Waltron - Model 3145 -Dissolved Copper Analyzer

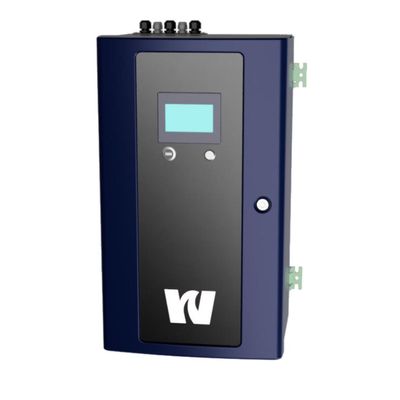

The Waltron 3145 Dissolved Copper Analyzer provides a reliable online colorimetric measurement of dissolved copper in clean water, which is crucial for monitoring corrosion in steam and boiler systems. Its color touchscreen interface and fast-loop reservoir ensure easy operation and accurate, independent measurements. The 3145 offers precise results and low-maintenance operation for ultra-pure water applications.
Most popular related searches
dissolved copper
copper analyzer
ultrapure water
flow detection
sample temperature
grab sampling
colorimetry detection
pure water
corrosion monitoring
colorimetry
- Accurate and wide-range analysis (PPB & PPM)
- 100% tooless wet section
- Pre-assembled pump/sample heads for quick changeout
- Automatic calibration and validation (QA/QC)
- Color touchscreen display
- Grab sample capability
- Internal datalogger with easy USB port on door
- Standard motion sensor LED light and color active alarm indicators
- Automatic start/stop based on sample flow detection with internal loop low reservoir
- Optional 24-48 hour real-time graph
- Parameter: Dissolved Copper
- Technology: Colorimetric
- Range(s): 0-100ppb, 0-3ppm
- Accuracy: (+/-) 2% of full scale
- Sample Streams: 1 to 2
- Response Time: ~12 minutes, batch process
- Cycle Time: One reading every 15 mins, adjustable
- Analog Outputs: 4-20mA (galvanic isolator option) or 0-5V
- Alarms: 2 or 4 configurable alarms (result, loss of sample, fault)
- Calibration Method: Automatic
- Calibration Frequency: One reading every 20 mins, adjustable
- Ambient Conditions: 10-45°C analyzer (50-113°F)
- Sample Temperature: 5-55°C (41-131°F)
- Sample Flow/Pressure: 100–500 ml/min; atmospheric
