Insite - Model 10PI -Dissolved Oxygen Analyzer

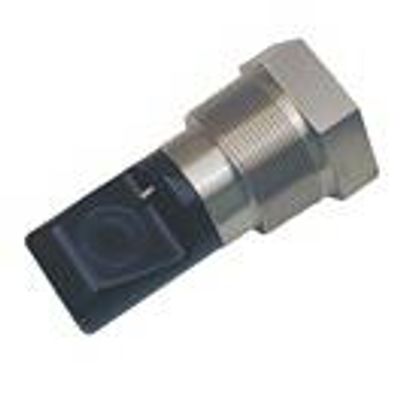

The Model 10PI Sensor is intended for in-line monitoring in a large diameter pipe. The mount is 2" NPT male thread in 316 stainless steel that works with a customer supplied 2" Thread-O-Let. The integrated jet clean with this sensor includes an inline check valve. There is a flow indication groove on the back of the sensor mount that should be parallel with the flow. Maximum in-line pressure is 20 psi. See the Single Channel Analyzer (SCA) manual for additional information.
Most popular related searches
inline check valve
dissolved oxygen sensor
single channel analyzer
dissolved oxygen analyzer
flow indicator
oxygen sensor
check valve
oxygen analyzer
- Ouroptical fluorescent technologyprovides increased dependability, no sensor caps, no routine calibration and no need for flow, because there is no oxygen consumption.
- Thesolid state electronicsmeans no membranes, no fill solutions, and reliable digital communications up to 2000ft.
- Ourside mount elementincreases impact protection and facilitates the integrated jet clean.
Our continuous DO sensors come standard with tool free ¼" O.D. tubing connectors for the integrated jet clean and 33ft (10m) of sensor communications cable. Additional cable length is available upon request.
Below are the available sensor options.
