VSI - Model Q-OX1LP -Dissolved Oxygen Measurement and Experimentation System

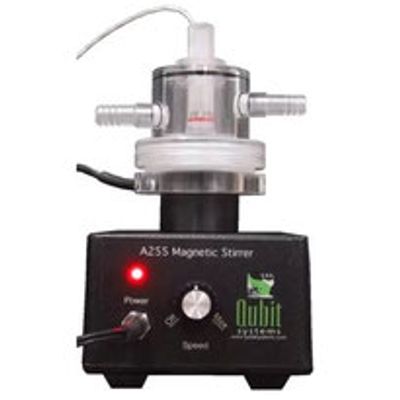

The OX1LP Dissolved Oxygen Packages offer a range of DO electrodes with varying volumes, starting from 1 ml up to 50 ml. The O2 electrode, housed in a water-jacketed cuvette, is suitable for measuring O2 consumption (or production) in biological samples or enzymatic reactions. Calibration is a straightforward 2-point process, with all necessary calibration accessories included in the package. With an outstanding accuracy and a resolution of 0.03% O2 (based on air-saturated water = 100%; Clark type), the Dissolved Oxygen Package allows for flexible expression of Dissolved O2 values in desired units such as mg L-1, % dissolved O2, ppm, etc., through a simple calibration procedure. The electrodes have a fast response time (15 s). The water jacket facilitates calibrations and experiments at consistent temperatures; for measurements at different temperatures a convenient correction can be applied using the included software.
