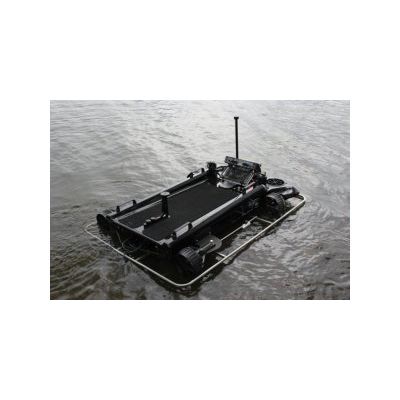

Mako - Diver Delivery Systems (DDS)

SHARE

The MAKO DDS Marks a New Evolution in Diver Transportation by Combining a Propulsion Device with the Shark Marine “Navigator”, Diver Held Navigation and Sonar Imaging System. The Combination Provides a System that is Capable of Automated Flight Paths, From a Simple “Goto Target” to Complex Survey Routes, While Providing the Diver with full Navigation and Forward Looking Sonar to View and Locate Targets up to 300m (984ft ) Away. The MAKO can be flown in Manual, Semi-Autonomous and Full Autonomous Modes. Unlike Standard Diver Propulsion Vehicles The MAKO uses Vertical Thrusters that Allow it to Adjust Its Pitch / Roll and Maintain Depth While Stationary

Most popular related searches
forward looking sonar
leak sensor
depth sensor
hydrographic monitoring
sonar
wheeled container
sonar system
hydrographic data acquisition
imaging sonar
hydrographic
  • Diver Delivery/Extraction
  • Covert/Clandestine Diver Delivery/Extraction
  • Payload Delivery
  • Data acquisition/hydrographic surveys
  • Search and Recovery

General Specifications:

  • Modes of Operation Manual, Autonomous, Semi-Autonomous
  • Axis of Movement  5
  • Intelligent Navigation Features Route Following (waypoint, target, and survey routes)
  • Station Keeping Auto Depth / Altitude Goto Target (with user defined standoff distance)
  • Number of Divers     1-2 Onboard, up to 4 Towed Behind

Mechanical Specifications:

  • Depth Rating  50m (164.0ft)
  • Dimensions (LxWxH) 1.86x1.25x.72m (6x4x2.4ft)
  • Weights (dry); MAKO DDS (less batteries & Navigator) 87kg (192.0lbs)*
  • Weights (dry); Battery Pod Only 12.7kg (28.0lbs) - neutrally bouyant


Power & Electrical Specifications:

  • Forward Thrust 26.8kg (59.2lbs) Total Forward
  • Maximum Forward Speed 2kt.
  • Range at Full Power Draw (full set of batteries) 14 km***
  • Battery Chemistry NiMH
  • Battery Monitoring Electronics Yes
  • Battery Status Display Faceplate LEDs
  • Depth Sensor Range 0 to 100m (+/-.1m), 0 to 328ft (+/- .3ft)
  • Leak Sensor Yes
  • Folding GPS Mast
  • Battery Pods
  • Battery Pod Mounts
  • Wheels
  • Shipping Container
  • LED Lights
