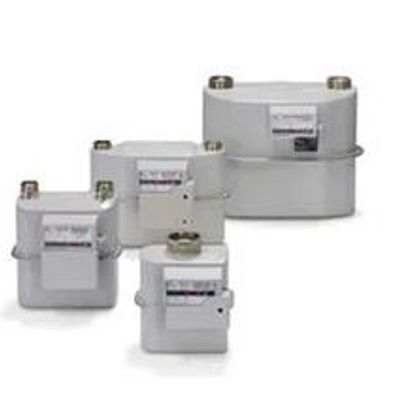

Elster - Model BK-G1.6 - BK-G6 -Domestic Diaphragm Meters
These meters are available in co-axial or two-pipe versions. The measuring unit operates on the principle of pneumatic control. This guarantees low noise, long-term stability and high accuracy and allows the possibility of including mechanical temperature correction (TC).
Most popular related searches
- Cyclic volume:
BK-G 1.6 : 0.8 litres or 1.2 litres
BK-G 2.5 : 1.2 litres
BK-G 4: 1.2 litres or 2.0 litres
BK-G 6: 2.0 litres - Rangeability :
BK-G 1.6 : 0.016 - 3 m³/h
BK-G 2.5: 0.025 - 4 m³/h
BK-G 4: 0.04 - 6 m³/h
BK-G 6: 0.06 - 10 m³/h - TC correction range:
(not BK-G 1.6 V 0.8 )
–10 °C to +40 °C (standard)
–25 °C to +40 °C (optional )
