Model A -Dosing System

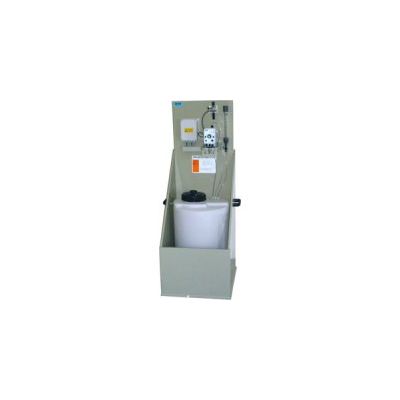

Ground floor dosing systems with reagent storage tank integrated in the supporting structure. The instrumentation is installed on the front panel and includes an electromagnetic dosing pump controlled electronically with both manual and automatic control of the flow measurement, fuse holder IP 65 with fuse protection. Possibility to install the calibration cylinder of the dosing pump, the degassing storage tank, in order to prevent the disengagement of the pump, the flow sensor and the anti-siphon valve for pressures up to 3 bar. The structure, equipped with containment dike connected to the tank, is made of anti corrosive plastics material. The system is available in 220 Volt 50 Hz or in 12/24 Vdc with or without solar panel (supplied). The small-sized dimensions, the compactness of the system and the quick fitting make the dosing group Type A a simple and functional product.
