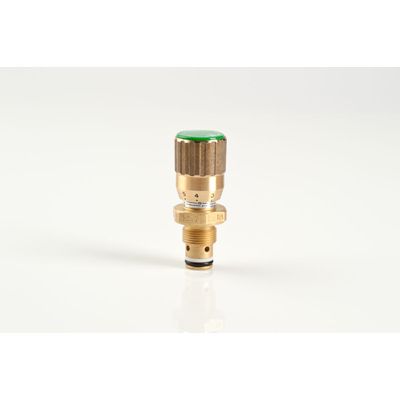

Tognella - Model FT 1247/2 -Double-Acting Flow Control Valves

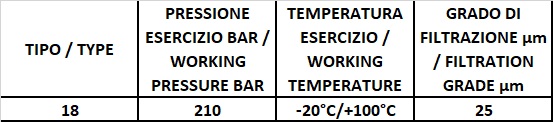

Double-acting flow control valves available only in 1/8" size. Max. working pressure 210 Bar, adjustable oil flow rate from 0,05 to 2,5 Lt./min - METRIC THREADS. Double-acting control. Microfine regulation. METRIC threads. Brass OT58 - UNI5705 Nickel Plated.
Most popular related searches
It is the solution for application requiring special adjustment of small flow rates. For both hydraulic-pneumatic applications with flow rate up to max. 3 l/min. They can be used also with fluids different from oil, such as: gas and liquids in general. This version has the same characteristics as the series FT 1250 and it maintains its main characteristics:
- metallic sealing
- provision for panel mounting
- security against accidental needle withdrawal.
