Strautmann Hydraulik - Model HZD1 series -Double-Action Hydraulik Cylinders 210 Bar

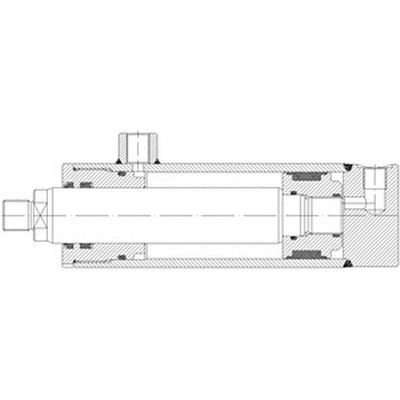

The HZD1 series cylinders are double-action cylinders without end position damping that are universally applicable due to their various models and sealing variants. The piston rod guide is designed to be screwable for maintenance tasks. The piston rod consists of high-tensile structural steel with an approximately 25µm hard chromium-plated layer. Other materials and coatings are available on request.
- Max. operating pressure: = 210 bar
- Test pressure: = 280 bar
- Piston ∅: = 32 – 125 mm
- Temperature range (of the hydraulic fluid): = -20°C to +80°C
- Pressure fluid: = Mineral oil (HL, HLP) according to DIN 51524 and DIN 51525 (standard)
- Stroke speed: = ≤ 0,5 m/s (Standard)
Length and stroke tolerances according to DIN7168g
Connecting Bore
The pipe thread of the connecting bore is designed according to ISO 228/1. The position along the perimeter can be changed (Standard P7/P8).
Guide & Seals
According to the stroke length, the supporting width of the piston rod is changed to reduce the load of the guidance system when the rod is completely extended.
Cylinder Forces
Theoretical cylinder force in [kN] (efficiency = 100%)
