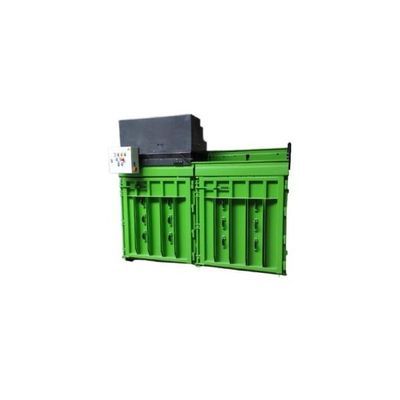

Bartontech - Model 300 -Double Chamber Vertical Baler Press

Technical parameters: unit height: 2950 mm. machine weight: 2530 kg. hopper width: 800 mm. height of hopper opening: 1200 mm. motor power: 5.5 kW. power supply: 3 x 400 V/50 Hz. circuit breakers: 25 A, delayed. cable connector: CEE 5 x 32 A/6H. unit depth: 1420 mm. compartment length: 1180 mm. chamber width: 800 mm. bale dimensions: 1200 x 800 x 800 mm. bale binding: Manual. bale ejection: Semi-automatic. bale weight: 250 – 450 kg. working cycle time: 50 s. pressure force of hydraulic cylinders: 250 kN (25 t). machine length: 2715 mm. width of machine: 1405 mm.
