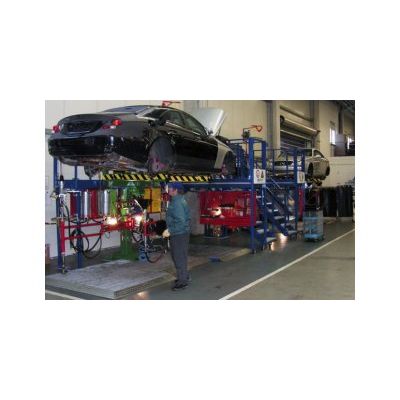

SEDA - Double Drain Station: Vehicle Drainage System

The module one is modular in design and can be expanded to include a gearbox drill, shock absorber drill or even a quality control unit. Its single stem design uses very little space and can be used with any hoist or ramp, even between two hoists. The compact design makes the module one ideal for smaller dismantlers or where space is at a premium.

Features

• Air powered
• Fully scaleable
• Flexible use
• Superior quality
• Easy handling
• Excellent safety
• High efficiency
• Explosion proof ATEX certificated

Details

• SEDA-Tankdrilling machine x 2
  The remarkable Tankdrilling machine drills through gas tanks and sucks out fuel at a rate of up to 20 liters per minute without spilling a drop. Its robust design and ease of use have made it the car dismantlers favorite around the world.
• Moveable staircase x 2
  An easy to move adjustable staircase reduces the risk of falling greatly and ensures that vehicles of all sizes can be drained. Largely increasing inputs, the raised platform enables simultaneous drainage from above and below the vehicle.
• Hydraulic tilting vehicle ramp x 2
  The 3 ton vehicle ramp can be tilted vertically to access the lowest point of the fuel tank. Drilling allows an extra 1-2 liters of fuel per vehicle to be removed. The fork distance is adjustable enabling easy fit for varying vehicle makes and models.
• Swing arm for fuel & oil removal x 2
  With swing arms holding the gas and oil evacuation tools, the overall system achieves higher efficiencies. Accidents are prevented through an entirely unobstructed work area and elimination of tripping or slipping causes. Furthermore the drainage of transmission and engine oil is performed simultaneously.
• Powerful pumps x 2
  1 inch EX-rated double diaphragm pumps create a powerful suction for fast evacuation. The drained fluids can be pumped more than 100 meters (horizontal) to distant tanks. Each pump is sound proofed and color coded for quick identification and to create a harmonious work environment.
• Catchment area x 2
  The zinc coated anti slip fluid catchment area not only prevents slipping but also accidentally spilled flammable liquids to become a possible ignition source.
• SEDA-closing plugs x 2
  The consistent drilling action ensures a consistent drill hole diameter. It is hermetically sealed with a SEDA-closing plug. This prevents even the smallest drop from contaminating your yard.
• SEDA-testing plugs x 2
  The patented SEDA-testing plugs for radiator and break fluid pump pressurized air into the system to enable a far better and faster removal rate than through suction alone.
• SEDA-brake fluid pliers x 2
  Break fluid is simultaneously and quickly removed via 4 suction boots which are attached to the vehicles’ brake nipples. Should the nipples be corroded or broken, the brake fluid can be removed directly from the vehicles’ brake line pipes or hoses using either one of two special break line pliers.
• SEDA-Quality control x2
  The 7 liter quality control vessel allows a visual check of the fuel quality preventing oil or water contaminated fuel from spoiling your good gas supply.
• Optional: SEDA-Gear box drilling machine
  Designed especially for gear boxes without drain screws, differentials or hard to remove sump plugs. Mobile and built tough. The gear box drilling machine makes light work of thick cast iron, steel or aluminum gear boxes.

• High safety standard
• Superior quality
• Air powered
• Fully scaleable
• Quiet and robust
• Special Nordic version available
• Double station as well
• Explosion proof ATEX certificated
• All benefits of SEDA equipment
