Huada - Double Girder Gantry Crane
Gantry Crane is widely used outdoor on the big work yard to lift material. There is no need to install the steel stand column, therefore. Gantry Crane will not occupy too much ground space. Generally. Gantry Crane can be divided into 5 kinds, namely Single Girder Gantry Crane. Double Girder Gantry Crane. Truss Type Gantry Crane. Box Type Gantry Crane, and Semi-Gantry Crane.

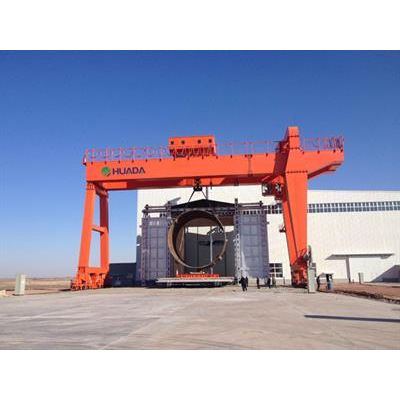

Double Girder Gantry Crane
Double Girder Gantry Crane is mainly consisting of the gantry structure, lifting trolley and cross traveling mechanism, long traveling mechanism, cabin and electrical control system. The trolley can move horizontally on a pair of rails on the main girder. The girder can be box or trussed type in according to your working environment situation.
Double Girder Gantry Crane Main Features
- Customized design base on GB/ISO/FEM/DIN/BS standards.
- High efficient, with the work class: IS0A5/A6. FEM 2m/3m.
- The frequency-converter can be installed according to the user`s requirements.
- Cabin control, remote control, pendant control can be equipped.
- Inspection standard for load test: Dynamic/ Static load test 1.1 times/1.25 times.
- All Series Gantry Crane are designed to be fit into and deliver by 40 footer open top container.
Main Components
Main structure
- Double welded box girder
- High quality carbon steel Q235B or Q345B ( 16Mn ) .
- Buffer block and orbital cleaning device are equipped to end beams.
- 8.8&10.9 high strength bolt is used to connect.
