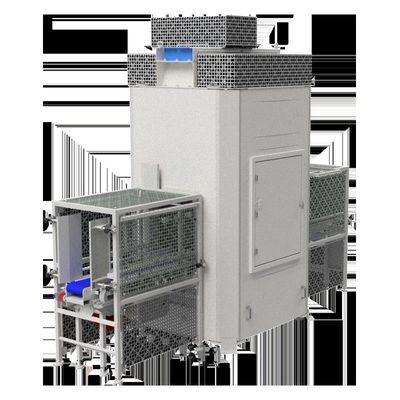

Double Or Single-Rotor Spin Dryer
Effective and energy-efficient drying performance for stacks of crates: Very effective moisture removal (less than 3 g of residual moisture), High uptime through robust and service friendly construction, Short drying cycle, Low energy consumption – saves 90% energy compared to a blow dryer. With a Brüel Systems spin dryer, entire stacks of foldable, rigid, or bale arm crates can be dried effectively in a matter of seconds, leaving less than 3 grams of moisture on each crate and preparing them for storage or re-use. Spin dryers can be specified with one or two lanes; each lane can handle one stack of full-size crates or two stacks of half-size crates with stack heights up to 1.200 mm.
The crate stacks are fed into a closed drying chamber where they are briefly spun around at 900 RPM, removing all moisture through centrifugal force. On average, a drying cycle takes only 13 seconds, contributing to high throughput and efficient performance at your facility. The dried stack is transported out of the spin dryer on a chain conveyor.
The high-efficiency 37 kW motor contributes to low energy consumption. Energy can be recovered and stored from the motor when coasting towards the end of the drying cycle. Moisture from the dried crates is collected and can be recycled for the dissolving processes of washing systems. Operator safety is ensured using interlocks on doors and flaps so that no one standing in the vicinity of the machine risks injury from ejected plastic parts.
