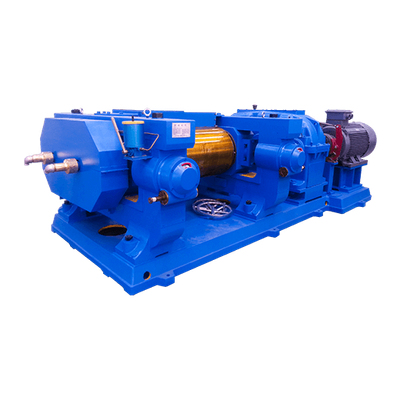

Xinda - Model XKP -Double Roller Rubber Grinder
The machine consists of main body, transmission, safety guard, roller temperature adjusting unit, lubrating systemand auto stop protection system.Two rollers are the main working parts of the machine, which are driven by motor via speed reducer and roate in a certain speed difference ratio.
Most popular related searches
waste tire recycling plant
waste tire recycling
tire recycling plant
waste tire
cooling system
recycling plant
tire recycling
rubber grinder
waste recycling plant
tire recycling system
- The roller surfaces are made of casted hard alloy materials, hard, wear proof and durable. It is supported by bearings at its two ends, Iubricate with oil filler;
- The clearance between two rollers can be adjusted with rated range. with safety guard system, when overloaded, the safety plate will break to protect machine parts from damage;
- There are rubber blocking plates at the end of the working roller and cooling system for roller surface
- Model: 560×800
- Capacity (Kg/H): 200-1000
- Working diameter (mm): Front560-Rear510
- Feeding size (mm): 30-60
- output size (mesh): 5-30
- Motor power (Kw): 90-132
- Weight (T): 19.5
