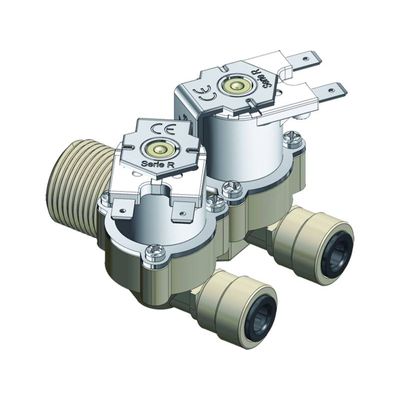

RPE - Model R Series -Double Solenoid Valve for Drinking Water Applications
FromRPE S.r.l.
Double R series: 2/2 solenoid valve, dn 10mm, servo-assisted, NC (normally closed), 2 outputs Suitable for use with drinking water. Also available with direct drive and in the NO (normally open) and bistable version. It can be used as an inlet solenoid valve, for water loading.
Most popular related searches
solenoid valve
drinking water
inlet solenoid valve
water control
water dispensing
water dispenser
hot water dispenser
water control valve
water valve
drinking water regulations
Installation
- In any position - Optional: Plastic or Metal mounting bracket
Applications
- All automatic water control applications.
- Water Inlet Valve: Coffee & Tea, Food Equipment, Ice machines, Household Appliances, Hot Tubs, Water dispensers, Marine Applications, Etc.
Physical characteristic
- Valve Body PA 66 -30% GF
- Diaphragm NBR, LSR
- Core Stainless steel
- Bobine F class (155°)
- Assembly: Self-tapping screws
Working specifications
- Working pressure: 0,2 - 10 bar
- Room temperature Tu 60 °C
- Fluid temperature: Tm 25 °C - Tm 60 °C - ED 100%
Tm 90 °C (3 min ON - 5 min OFF) - Orifice: DN 8 mm;
DN 10 mm - Control: Normally Closed (NC);
Normally Open (NO);
Latching (LC) - Fluid direction Unidirectional
- KV 90° 13,00 L/min
- KV 180° 12,26 L/mm
Electrical Connections
- Faston 6,3 x 0,8 mm
Hydraulic connections
- IN Male thread 3/4”;
- Male thread 3/4” GHT
- OUT Hose tail 10 mm;
- Hose tail 13 mm;
- Spigot 10 mm;
- Male thread 1/4”;
- Quick coupling 8mm;
- Quick coupling 10mm.
MOQ
- Double 90° 80 pcs
- Double 180° 80 pcs
