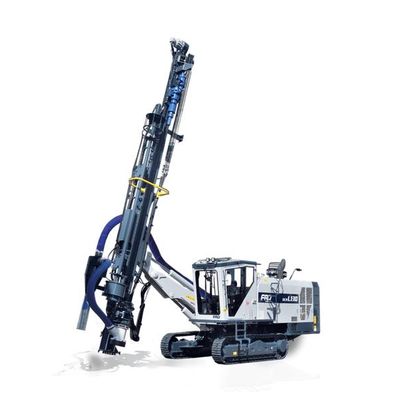

Furukawa - Model DCRL130 -Down the Hole Drill
The DCRL130 – Environmentally friendly and compliant with market-specific emission regulations. These drills have been proven in soft, medium and hard rock conditions with multiple end-users and applications providing deep holes from 3.5″ to 6.5″ in diameter at fast drilling rates with low maintenance requirements.
Most popular related searches
dust control system
water dust control system
water dust control
dust suppressant
emissions regulations
dust control
rock drilling
dust collector
while drilling
drilling rock
The DCRL130 uses a clean engine that complies with emission regulations (EPA Tier 4 Final / EU Stage V). The “Super Economy Mode PLUS” cutting-edge fuel-saving technology allows the operator to select the engine speed during drilling operations according to rock quality, reducing fuel consumption while maintaining drilling performance. In addition, a compressor with powerful flushing capability and a high-performance dust collector provide high drilling capacity and reduced cycle time. Furthermore, the conventional frame and boom shape have been revised to simplify transportation and maintenance operations.
- Single-lever drilling control for easy operation.
- Finger-touch levers for smooth traming control.
- Large windows maximize operator visibility.
- All-in-One display allows operator to monitor machine functions and angle indicator for quick and easy drilling alignment while remaining focused on the drilling.
- Walk-around ground level maintenance provides fast, easy upkeep or repair.
- Rubber-mounted engine frame isolates cab from engine vibrations.
- Reliable dust control system increases suction capacity and provides effective pre-cleaning to reduce the escape of drilling dust. An optional dust suppression system is available for difficult drilling conditions.
- Overall weight in lbs. (kg): 54,675 lbs (24,800 kgs)
- Overall length in inches (mm): 34′11″ (10,630 mm)
- Overall width in inches (mm): 14′7″ (4,455 mm)
- Overall shipping width in inches (mm): 8′10″ (2,700 mm)
- Overall height in inches (mm): 14′11″ (4,540 mm)
- Water / Dust Suppression System – 70 gal
- 2D Angle Indicator
- 3D Angle Indicator
- Rear Bumper
- Cold Weather Kit (Esper, Webasto)
- Heating Pad
- Hand Rail
- Central Greaser
