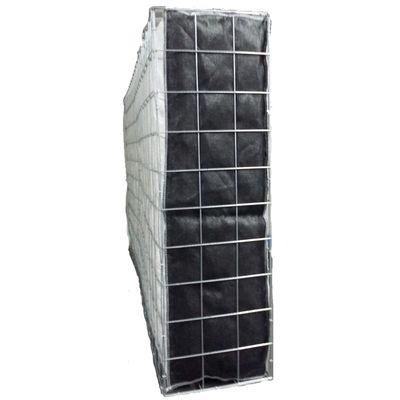

Drenoter - Model 1.000 2 X 1,0 X 0,3 m -Draining Panel With High Hydraulic
Patented draining panel with iron cage and internal non-woven bag filled with expanded polystyrene blocks ,the most used in the drainage of landslide areas, the number one for hydraulic and mechanical performance, also ideal for the drainage of retaining walls and foundations.
Most popular related searches
geotextile filter
retaining wall
drainage system
geotextile geogrid
geogrid
geotextile
UV stabilized netting
landslide
drainage area
geotextile product
Geotextile Filter
- Type:nonwoven continuous filament spunbonded
- Raw material: polipropilene
- Weight: between125 and 155g/m2
- Thickness (2 kPa): between 1.0 and 1.2 mm
- Water permeability (2 kPa): 100l/m2/s with Ah=50mm
- P ore s ize: between 85 and 105 jim
- Tear resisterce: between 9.5 and 11.5 kN/m
- Elongation :90/75%
- Plastic Geogrid On The Vertical Head
- Type:HD PE net UV stabilized
- Warp.wire 0.285mm. n.8 wires
- Weft: wire 0.285 mm. n.5.5 wires
- Weight: about 96g/m2]
- Pore size: sufficient to retain plastic core
Seam Of Geotextile To Geogrid
- Geotextile will be sewn to geogrid through multifilament hd peyarn and a polipropilene wire, in order to avoid the loss of the plastic core.
Draining Core (Plastic Selected Chips)
- Raw material: polistirene chips
Hydraulic Performances* of the Draining Panel (No Vertical Load)
