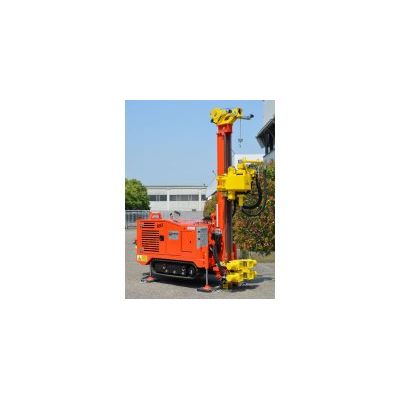

Massenza - Model MI3 -Drilling Rig
Solidly constructed and versatile the rig is used for various applications: small water wells, geothermal applications, soil investigations, coring and micro piles. The rig is designed for working safely with various drilling methods: direct circulation, down the hole hammer drilling and augering. Thanks to the remote radio control the rig can be completely move from the ideal working position, for a perfect sight of the drilling movements. Numerous options are available to personalize the rig for every drilling requirements.
WORK METHODS
- Rotation with direct circulation.
- Nucleus destruction with bleeding by water, mud and foam.
- Rotation with down the hole hammer.
- Coring
- Percussion drilling
POWER PACK
Engine power 70 Hp (51,5 kW)
FUEL TANK
Capacity 60 litri (16 gal)
SLIDING MAST: stroke 400 mm (1,3 ft)
MAST: max. stroke of rotary head 2,4 m (7 ft 10”)
Standard: Pull up and down 3.100 daN (6.970 lbf)
Optional: Pull up and down 3.600 daN (8.093 lbf)
Optional: Pull up and down 4.000 daN (10.341 lbf)
ROTARY HEAD
model TM3C1: max torque 5.040 Nm (3.717 lbf•ft) – max speed 714 Rpm
model TM3C3: max torque 8.000 Nm (5.900 lbf•ft) – max speed 160 Rpm
WINCH
Max line pull 1.000 daN (2.248 lbf)
DOUBLE HYDRAULIC CLAMP
model MS175: max passagge Ø 175 mm (7”)
model MS225: max passagge Ø 225 mm (9”)
