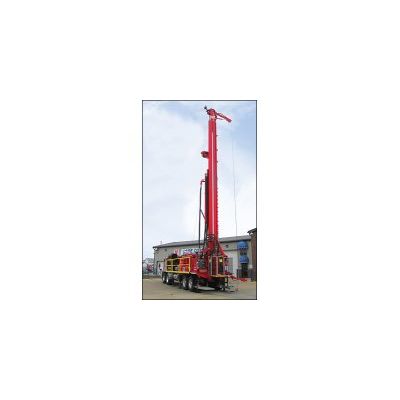

VERSA - Model V-2100EXP -Drilling Rigs

Power Distribution
Drill/truck single-power source with exclusive Versa-Drill power distribution gearbox/pump drive provides direct coupled thru-drive to power rig hydraulics and Ingersoll-Rand/Doosan screw air compressor

Hydraulics
Rotation is a closed loop circuit powered by a variable displacement piston pump. Feed, winch, auxiliary and set-up functions are powered by 5 axial piston load sense pumps. 250 gallon reservoir with 10 micron in-tank return filter and 10 micron pressure filters for closed-loop pumps

Derrick
Tubular derrick construction: 12" x 28"
Overall length: 43`
Top head travel: 36` top
(No derrick crown load)

Feed System (patented)
Direct coupled, hydraulic cylinder driven
Pullback    100,000 lbs
Pulldown    34,000 lbs
Travel Speed    Up 0 to 165 FPM
     Down 0 to 213 FPM


Standard Top Head
2 motor combination planetary/spur gear
Variable 3 speeds/torques
10,000 ft-lbs @ 125 RPM
5,840 ft-lbs @ 175 RPM
3,545 ft-lbs @ 250 RPM

Automated Drill Rod Storage & Handling System (patented)
Automated drill rod storage and control system stores and positions
25 pieces of 4 1/2" x 20` drill rod or
31 pieces of 3 1/2" x 20` drill rod

Main Winch & Jib Boom
Hydraulic power with integral brake
Rope capacity: 220` of 5/8" rotation resistant cable
Lift capacity: 12,000 lbs single line (bare drum)
Speed: 98 FPM
Jib boom: Hydraulic swing/extend with 180° radius swing and
40" extension for main hoist line

Control Panel
User friendly electro/hydraulic controls with functionally grouped gauges and twin fold-up aluminum platforms. Console side shifts 24" to the left to remove all pinch points

Leveling Jacks (6 point leveling)
2 mid-mounted 48" stroke leveling jacks behind cab
2 rear-mounted 36" stroke leveling jacks
2 stabilization 36" stroke leveling jacks to support cab front end weight

Split Centralizer Table
Retractable hydraulic split centralizer table including hydraulic breakout wrench and air operated holding wrench. Table opening will accommodate up to 24" casing

Dimensions
Overall Length    48`
Overall Height    Derrick up: 42`
Derrick down: 12` 9"
Overall Width    8` 6"


Options (at additional cost)

Air Compressor
Up to 1250 CFM/350 PSI self-contained module
*Direct driven with drive shaft from power distribution box accompanied by hydraulic chassis clutch control (controlled at drilling console)

Optional 500 RPM Top Head
4,435 ft-lbs @ 220 RPM
3,185 ft-lbs @ 305 RPM
1,935 ft-lbs @ 500 RPM

Optional 750 RPM Top Head
8,750 ft-lbs @ 120 RPM
1,390 ft-lbs @ 750 RPM

Optional 1,000 RPM Top Head
8,750 ft-lbs @ 120 RPM
1,035 ft-lbs @ 1,000 RPM

Main Winch & Jib Boom
Up to 18,000 lbs (bare drum)

Auxiliary Hoist
Up to 8,000 lbs auxiliary hydraulic winch with swing jib, LED light and optional freefall Wire line winch (M8) (bare drum)

DHD Lubricator
7 gallon capacity

Water Injection
Up to 75 GPM


Mud Pump
3x4 centrifugal w/ mechanical seal
300 GPM/230 PSI

Hose Reel
Manual 1.18" hose OD capacity 175`

Catwalk
18" aluminum catwalk available with optional inner and outer handrails

Range III Casing Sheave Assembly
Provides the ability to handle a maximum 50,000 lbs of Range III casing

Additional Options
Reverse Circulation Swivel
Tilt Top Head
Australian Compliant Safety Package
Engine Guarding, E Stops, Inner Catwalk Railings, Etc.
Auxiliary/Booster air connections to both sides of the rig
Battery Isolation System
Hammer Holders

Truck Specifications
Custom 6x8 (all wheel drive) two man carrier with center man drive
Wheelbase: 236"
GVWR: 94,000 lbs
*Australian load share compliant

Axles and Suspension
Front Axle Rating: 44,000 lbs
Front Suspension: 44,000 lbs each leaf
Rear Axle Rating: 50,000 lbs
Rear Suspension: 50,000 lbs spring-mounted walking beam
*Driver controlled full locking axles

Engine
CAT C18 (630 HP)

Transmission
Manual, 10-speed

Frame:
12 5/8" x 3/8" x 3 1/4"
11 7/8" x 5/16" x 2 7/8" C-channel

Brakes
Air brake system with anti-lock brakes

Clutch
Eaton self-adjusting clutch

Fuel Tank Capacity
250 gallon


Other Specifications
Alcoa aluminum wheels
Aluminum fuel tanks
Aluminum mirrors (powered)
Jacobs engine brake
Power steering
Power brakes
Diesel fired engine heater (pro heat)
AM/FM radio
Air conditioning
Water preheater
