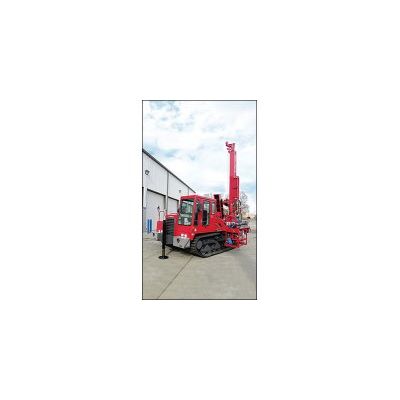

VERSA - Model V-50GTRX -Drilling Rigs

Mounting
Rubber track all-terrain carrier
IHI-70 (224HP)

Air Compressor
Auxiliary air connections (only)

Derrick
10"x16" tubular derrick construction
35` 10" overall length
26` top head travel 55,000 lbs rating
(No derrick crown load)

Feed System (patented)
Cylinder feed through gear track design
Pullback     20,000 lbs
Pulldown     11,000 lbs
Travel Speed     Up 0 to 75 FPM
Down 0 to 135 FPM
Drill Feed     29 FPM

Standard Top Head
2 motor combination planetary/spur gear
Variable 2 speeds/torques
4,400 ft-lbs @ 160 RPM
3,200 ft-lbs @ 220 RPM

Main Winch
Hydraulic power with integral brake
Rope Capacity 400` of 3/8" cable
Lift Capacity 8,000 lbs single line (bare drum)
Speed 78 FPM

Jib Boom
Manual swing for main hoist line

Cooling
Hydraulic oil cooler mounted on deck

Controls
Left hand mounted, functionally grouped gauges and controls

Leveling Jacks
1 front-mounted 36" stroke leveling jack and 2 rear-mounted 36" stroke leveling jacks with independent controls

Split Centralizer Table
Split centralizer for rod handling and up to 8" casing through centralizer table. Includes manual pipe holding wrench and hydraulic breakout wrench.

Hydraulically Tilting Rod Box
30 pieces of 3" x 10` drill rod or 25 pieces of 3 1/2" x 10` drill rod.

Dimensions
Overall Length     24` 3"
Overall Height     Derrick up - 26`
Derrick down - 9` 9"
Overall Width     8` 4"

Rod Handling
300` of 3"x10` or
250` of 3 1/2"x10`

Main Winch
2,000, 4,000, 8,000 (standard) or 12,000 lbs

DHD Lubricator
7 gallon capacity

Water Injection
FMC Bean pump with 9 GPM capacity

Mud Pumps
3x4 centrifugal with mechanical seal
5x6 piston-type hydraulic driven

Grout Pump Assembly
Geo-Loop YP1 compact grouter,
Deck mounted hydraulically lowered to the working area

Night Lighting System
3 LED lights mounted on derrick and above control panel

Hose Reel
Manual 1.18" hose OD (capacity 175`)
