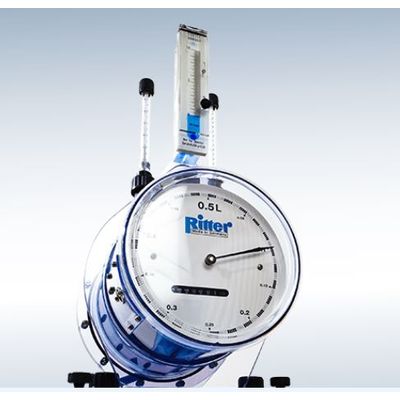

Drum-type Gas Meters
RITTER drum gas meters can be used universally for measuring the volume of flowing gases, especially for small and medium flow rates, e.g. in laboratories, where the highest level of precision is required. Highest measuring accuracy of ±0.5% over the entire measuring range.
- Highest accuracy: ±0,5% across full flow rate range
- Calibration traceable to the German National Primary Standard (PTB)
- Measurement of all gases and gas mixtures with equal accuracy
- Use with extremely corrosive and inert gases
- Lowest measurable flow rates
- Largest selection of measuring ranges
- Real time data acquisition option for PC (requires option »Pulse Generator«)
- Most durable construction – available, both chemically (from high-quality thermoplastics) and mechanically (stainless steel)
- Maintenance-free (just checking of packing liquid level required)
(1) The calibration is performed at standard flow and 20 °C (68 °F)
(2) Minimum dial division
The maximum gas inlet overpressure is dependent on the gas meter type and casing material:
With plastic casings TG05 – TG5: Standard version 50 mbar – Special version 500 mbar (except of PE-el model)
With plastic casings TG10 – TG50: 50 mbar
With stainless steel casings: 0.5 to 40 bar
Measuring accuracy: ± 0.2% at standard flow rate (exact value is stated in individual Calibration Certificate) and approx. ± 0.5% across the entire measuring range.
