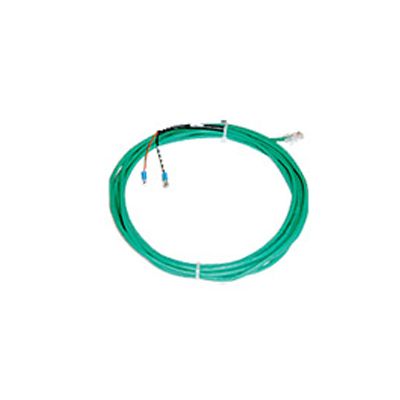

SensorHawk - Model SH-DCS-15 -Dry Contact Smart Sensor
The Dry Contact sensor is a simple connection that can be used to for relay controlled burglar alarms, fire alarms or any dry contact switch or relay application that requires monitoring by the base unit. Dry contact sensors are user definable and can be used to detect many different inputs such as UPS status, security systems, air conditioning status. The base unit senses this closure and opening and reports the condition.Most popular related searches
It works with all SensorHawk Base Units and SecurityHawk Base Units and must be connected to a base unit in order for dry contacts relay switch to be powered and controlled.
SNMP traps and sensor polling available (MIB file supplied).
SMART SENSOR FEATURES
- View from any web browser
- Quick and simple set-up and configuration
- Receive email and SMS alert notifications
- Supports SNMP polling
- Easy firmware updates
SPECIFICATIONS
- Length: 4.5 meters (15 feet)
- Maximum Extension Cable Length: 305m (1000 feet) with standard CAT 5 cable
- Sampling Rate: Multiple Readings per Second
- Measurement Range: Alarm or Normal
- Communications Cable: RJ45 jack to sensor using UTP Cat 5 wire
- Sensor Type: Open / Closed Contact Switch
- Disconnect Alarm: Dry contact switch will alert if the sensor becomes interrupted or disconnected.
