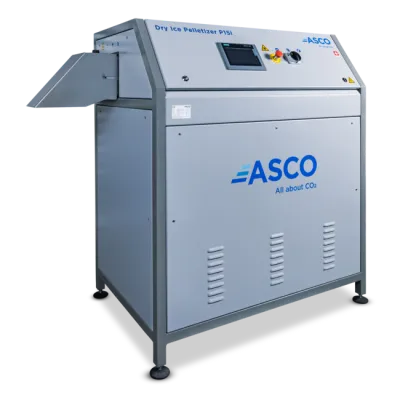

ASCO - Model P15i -Dry Ice Pelletizer
The ASCO Dry Ice Pelletizer P15i is a compact and efficient machine designed to produce 150 kg/h of high-quality dry ice pellets. It belongs to the innovative i-Series, which integrates state-of-the-art remote control capabilities for seamless operation and maintenance. The system is operated by a Siemens PLC with a touch screen interface, ensuring precision and ease of use. The machine features a powerful hydraulic unit that starts instantly with the push of a button, and it includes fully automated controls for oil temperature and the dry ice snowing process, guaranteeing continuous production without the need for supervision. The P15i can be paired with an ASCO Revert Gas Recovery System to maximize CO2 conversion efficiency. Its connectivity options include LAN, Ethernet, WiFi, and 3G, offering robust remote access and data management functionalities, aligning with Industry 4.0 standards.The ASCO Dry Ice Pelletizer P15i is a compact and powerful dry ice machine from our i-Series line. Having a production capacity of 150 kg/h (331 lb/h) it meets the demands for higher dry ice quantities plus quality and flexibility in the daily working process.
It is equipped with state-of-the-art remote control devices and thus is ready for a wide range of services in the areas of Remote Access, Remote Data, Remote Management. Whether for fast and efficient trouble shooting and maintenance or for gathering production and performance data - the ASCO i-Series offers a wide range of possibilities to link Industry 4.0 with dry ice production.
The ASCO Dry Ice Pelletizer P15i is driven by a powerful hydraulic unit featuring instant push button start. All functions are controlled by a Siemens PLC with touch screen. A fully automatic control of oil temperature and dry ice snowing process guarantees continuous dry ice production without any supervision right from pushing the start button.
To maximise the CO2 to dry ice conversion ratio the dry ice pelletizer can be connected to an ASCO Revert Gas Recovery System.
- SUSTAINABLE: Dry ice is made from recycled CO2 and does not consume valuable water
- COST SAVING: No ordering-, rental- and transportation-costs for dry ice and equipment, No ordering of unnecessary safety stock
- PROCESS RELIABILITY: Consistently high quality of dry ice, No delivery delays
- INDEPENDENCE: No dependency on suppliers
- COOLING EFFICIENCY: Dry ice has 3 times the cooling capacity of conventional water ice (approx. 640 kJ/kg)
- UNTOXIC: Dry ice is not a hazardous material. It is a food grade material and approved by the EPA, FDA and USDA
Production capacity: 150 kg/h (331 lb/h), +/- 5 % at 16 - 20 bar (232 - 290 psi) CO2 inlet pressure
Voltage: 480 V / 60 Hz / 3 Ph + PE, (other voltages on request)
Max. power consumption: 5.6 kW (7.5 HP)
Dimensions (L x W x H): 1'560 x 800 x 1‘450 mm (61 x 32 x 57 in)
Weight net: approx. 500 kg (1'100 lb) (with hydraulic oil), approx. 440 kg (970 lb) (without hydraulic oil)
Weight packed: approx. 550 kg (1'213 lb) (without hydraulic oil)
CO2 inlet connection: 1“ BSP female
CO2 source: CO2 storage tank, liquid phase (16 - 20 bar) (232 - 290 psi)
Optional Connectivity: remote access and data services: LAN, Ethernet, WiFi, 3G
