Hibon - Model NX Series -Dry Running Tri-Lobe Air Positive Displacement Blower

Constant Volume Output: They give a steady airflow even when pressure changes, which is good for consistent tasks.

Adaptable: They work well in both low-pressure situations and vacuum, so they fit many applications.

Energy Efficiency: They are often more energy-efficient than other technologies, especially in applications where a constant volume of air or gas is required without the need for frequent adjustments.

Low Maintenance: Positive displacement blower typically has fewer moving parts, leading to lower maintenance requirements and longer service life compared to some other compressor types.

Accept Dirty Environments: Many industries use them in dusty or dirty environments without compromising performance.

This series of positive displacement blowers is typically integrated into our SilentFlow package offering a turnkey solution for applications involving air or inert gases.

Type of technology for this positive displacement blower: "roots" type

• Rotors: One-piece three-lobe rotors
• Gears: Helical gears located on the opposite drive side
• High quality mechanical rotary pistons and volumetric efficiency
• Bearings: Four oversized bearings for lifetime reliability
• Oil reservoir: Large oil reservoir for improved bearing lubrication
• Oil thrower: Oil thrower and oil passages for good bearing lubrication and long life
• Seals: Four piston ring seals plus a shoulder by sealing for totally oil free operation
• Shaft seals: Dynamic shaft seals arrangement
• Auto-adjustments of the lateral clearance to improve efficiency in the manufacturing
• Lifetime reliability
• 100% oil free process
• Blower without maintenance for 40,000 hours (except oil each year or every two years if you use HIBON LUBE)
• Exchangeable with the previous range
• Lifting lugs

Range of Applications:

• What is this positive Displacement blower used for?
• Positive Displacment blower generates a high volume of air or gas flow, making them well-known in the industry. NX series PD blowers can also operate in a vacuum, creating a low-pressure environment.
• Pneumatic conveying
• Aeration (WasteWater Treatment)
• Fluidisation
• Conveying plastic pellets
• Filter cleaning

Discover here some specific applications;

How does NX series Positive Displacment Blower work?

NX series positive displacement (PD) blower operates by trapping a specific volume of air or gas in a chamber and then displacing it out through an outlet. Here's a simplified explanation of how it works:

• Intake Phase: The blower's rotating lobes (rotors) create expanding chambers that draw in air or gas from the surroundings.
• Discharge Phase: As the lobes or rotors continue to rotate, the trapped air or gas is displaced from the chamber and forced out through an outlet, without undergoing compression within the blower itself.
• Continuous Cycle: This process repeats continuously as the lobes or rotors rotate, generating a steady volume of air or gas flow.

In summary, NX series positive displacement blower works by trapping and displacing a fixed volume of air or gas per rotation cycle, without internally compressing it.

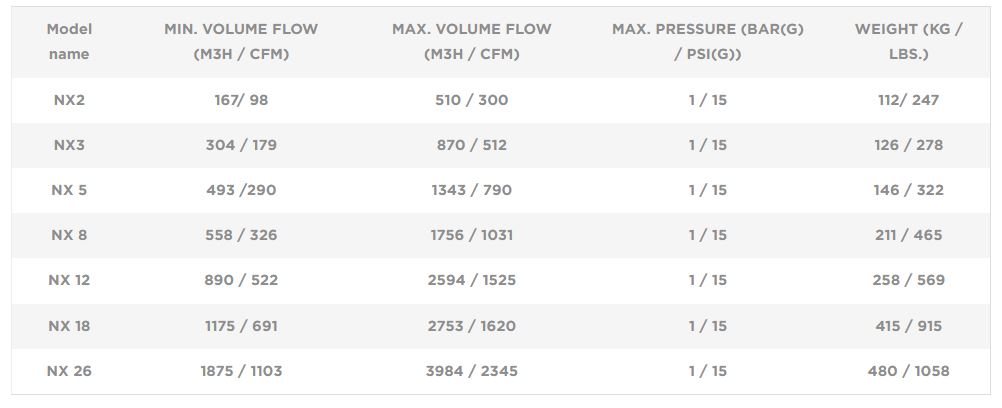

• Flow: From 100 m3/h to 13,000 m3/h
• Pressure up to 1 bar eff.
• Vacuum up to 500 mbar
