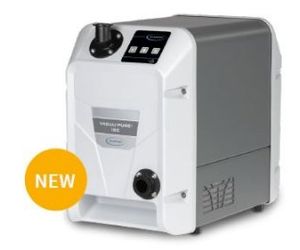

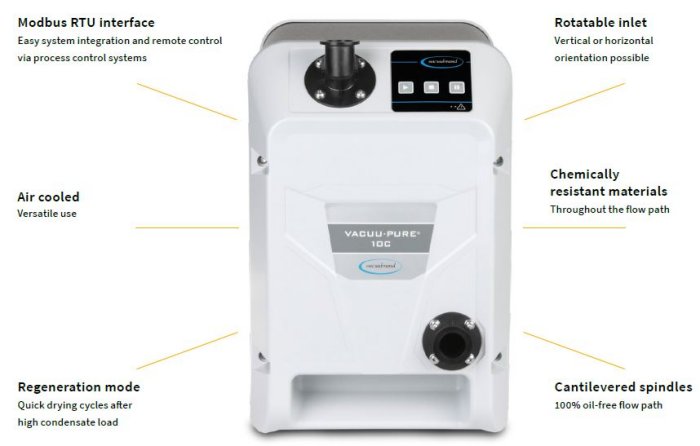

Vacuu·Pure - Model 10C -Dry Screw Vacuum Pump for Aggressive Gases and Vapors

10-3 mbar vacuum range

100% oil-free
For dry and complete oil-free operation, VACUU·PURE takes the screw pump principle to the next level. The vacuum pump is 100% oil-free.

This enables clean processes and pure products and protects the laboratory and environment. Save both time and operating costs, since there is no need to dispose of waste oil or to interrupt your work for oil changes.

Chemically resistant
The wetted materials in the vacuum pump are all made of chemically resistant polymers. A thick-walled PEEK encapsulation protects the spindles and stator inside the pumping chamber, providing high chemical resistance. The chemically resistant wetted materials make VACUU·PURE 10C well-suited for work with aggressive gases and vapors. Cold traps are not typically needed to protect the pump, as it is often the case with other technologies. The new screw pump has an exceptionally high vapor and condensate compatibility. Thanks to the integrated regeneration mode, it dries out quickly after pumping heavy vapor loads and is ready for the next process.

We can let VACUU·PURE run overnight without any worries because cold traps with liquid nitrogen are no longer needed. This has led to a significantly higher throughput in the laboratory. This vacuum pump will be a sensation in the market.

A major benefit of VACUU·PURE is that it does not have any wear parts. The spindles rotate contact-free. Components are manufactured with the highest precision, down to the smallest detail.

The special design enables you to run your process without interruption. VACUU·PURE has no scheduled maintenance for replacement of wear parts. This saves time, reduces operating costs, and enables trouble-free operation.

• Drying
• Heat treatment
• Freeze drying
• Fore vacuum generation for turbomolecular pumps
• Distillation
• Schlenk line
• Analytical applications
• Degassing
• Coating

VACUU·PURE is ideal for clean processes and pure products in the vacuum range down to 10-3 mbar.

Drying processes, manipulation of oxygen- or moisture sensitive compounds, distillations, and even coating processes can be run with the dry screw pump without downtime for maintenance.

At the same time, the high chemical resistance enables trouble-free operation. A cold trap is rarely needed to protect the pump. This saves time and operating costs and enables continuous processes without interruption.

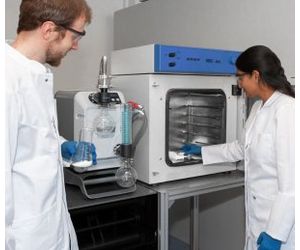

VACUU·PURE can be operated continuously at higher pressures so that in a drying oven, both the primary drying and subsequent residual drying steps can be performed with a single pump. For distillation processes which operate in the transition range from rough to fine vacuum (10 mbar to 0.1 mbar), VACUU·PURE delivers high pumping speeds at low pressures combined with high chemical resistance. In freeze drying, excellent results are achieved during the residual (aka secondary) drying phase due to VACUU·PURE‘s impressive ultimate vacuum.

VACUU·PURE easily handles high vapor loads through its high condensate compatibility. A gas ballast is therefore not necessary. The integrated regeneration mode enables rapid drying of the pump after the end of the process and thus the sample throughput can be significantly increased, as compared to other pump technologies.

VACUU·PURE is also available in a special design for working with non-corrosive gases and vapors.

With VACUU·PURE, we have a flexible pump which we can use for our processes below and above 1 mbar. Thanks to its high pumping speed, we can even run two processes
