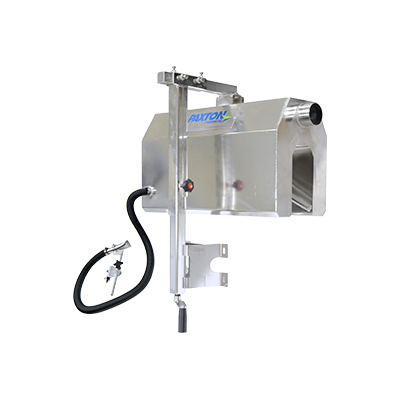

PaxtonModel Can Dryer -Drying Manifold for Centrifugal Air Blowers

SHARE

Paxton`s CanDryer is designed to provide complete drying of the tops and sides of 8 - 24 oz cans to improve the quality of coding, labeling, and packaging. The CanDryer replaces conventional Air Knives and Nozzles with an all-in-one drying manifold to improve the quality of drying while enhancing usability. Not only does the manifold box contain water spray to help improve production floor safety, the stainless steel construction of Paxton’s CanDryer makes it suitable for washdown areas and harsh detergents. The CanDryer also comes equipped with an integral mounting arm and an optional empty container blow-off attachment.

Most popular related searches
Mounting Arm:
  • Integral crank for easy product changeover
  • Stainless Steel Construction
  • Locks in place after adjustment
  • Horizontal (5 inch) and vertical (10 inch) adjustment
  • At minimum height: 9 x 24 x 14 inch

Empty Container Blow-Off Attachment:

  • Optional stainless steel flare nozzle and mounting bracket with 5 feet of hose
  • Increased thrust available for heavier containers
  • Horizontal (1 inch) and vertical (9 inch) adjustment for nozzle mounting bracket
  • 1.25 inch diameter nozzle with 1.8 inch flare
  • Incorporates two Air Knives and six Nozzles into a single drying manifold
  • Thoroughly dries the tops and sides of 8 - 24 oz cans
  • Eliminates variability due to air knife positioning
  • Manifold box improves production floor safety by containing water spray
  • Easily adjustable for varying can heights
  • Smaller footprint than conventional air knife drying systems
  • Stainless Steel construction withstands harsh detergents used in washdown areas
  • Includes adjustment markings to facilitate ideal placement
