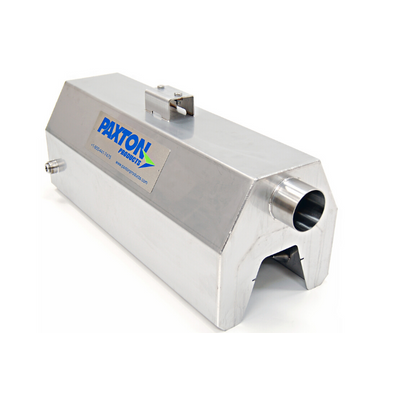

Paxton - Model Can Dryer -Drying Manifold for Centrifugal Air Blowers
Paxton`s CapDryer provides complete drying of the bottle neck and lid to improve the quality of coding, tamper branding, labeling, and vision system results. The CapDryer is an all-in-one drying manifold designed to dry bottles ranging from 8 oz - 3 liters and is available in two different sizes (12 and 24 nozzle).
Adjustable for most bottle types and sizes, the CapDryer is coupled with Paxton`s PX-Series Centrifugal Air Blowers to thoroughly dry the bottle cap and throat within an 18-30 inch (467-762 mm) footprint. Not only does the manifold box contain water spray to help improve production floor safety, the stainless steel construction of Paxton’s CapDryer also makes it suitable for washdown areas and harsh detergents. The CapDryer also comes equipped with an integral mounting arm and an optional empty container blow-off attachment.
- Integral crank for easy product changeover
- Stainless Steel Construction
- Locks in place after adjustment
- Horizontal (5 inch) and vertical (10 inch) adjustment

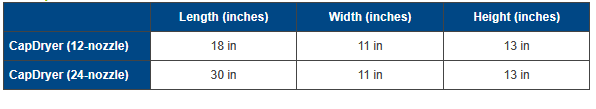

- At minimum height: 9 x 24 x 14 inch
Empty Container Blow-Off Attachment:
- Optional stainless steel flare nozzle and mounting bracket with 5 feet of hose
- Increased thrust available for heavier containers
- Horizontal (1 inch) and vertical (9 inch) adjustment for nozzle mounting bracket
- 1.25 inch diameter nozzle with 1.8 inch flare
- Reduced false readings from vision system photo eyes
- Manifold box improves production floor safety by containing water spray
- Gave a ten-fold reduction in vision system rejection rates
- Improves adhesion and positioning of label and tamper branding
- Eliminates coding quality issues due to smearing
- Easy adjustment for bottles and cans of different heights
- All-in-one drying manifold simplifies installation
- Includes adjustment markings to facilitate ideal placement
- Stainless Steel construction withstands harsh detergents used in washdown areas
