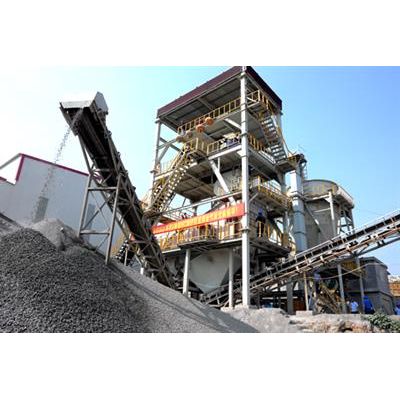

DSMAC - Short Process Sand Making System
Economic benefits the “Champion” series short process sand making system has brought. With great vision and strategic measures, DSMAC, as the vanguard, successfully promoted the “champion” short process sand making system. It is blessed with merits such as advanced technology, reliable quality, and environment-protecting. At present, 300tons of short process sand making system made by DSMAC for Henan Xinxiang Xinliang building materials company ., Ltd has taken back all the investment after coming into operation for half a year. Considerable profits have been achieved.
Take the short process sand making system with capacity of 500 thousand squares per year as an example:
Raw material: limestone capacity: 160t/h. Total investment in this production line is 5million. That’s to say, it takes five months to take back the whole investment.
The income per hour is 4500RMB [gravel: 150tons*(50-25) =3750, mineral powder10*75(the price) =750RMB]
Production cost per hour: 806.5RMB(4RMB/T), electric charge 280RMB/h, wear-resistant material and spare consumption 300RMB/h, labor cost 26.6RMB/h, management cost 100RMB/h, depreciation 100RMB/h, total is 806.5RMB/h.
Income per hour is 3694RMB, per month 923.5 thousand RMB, per year 11.08 million RMB.
Advantages of short process sand making system
“Champion” short process sand making system has thoroughly altered the mode of traditional sand making system by integrating crushing, shaping, control of fine aggregate, grading adjustment and control of water content of manufactured sand.
The core sand maker of this system is German BHS, which can process the gravel of 105mm into high-quality manufactured sand, simplify the process, greatly reduce the equipment investment, and diminish notably production cost. With advanced particle grading adjustment device, it can make the fineness modulus of the system be adjusted between 2.2 -3.0.
Compared with conventional VSI sand maker, German BHS with the exclusive patented double cavity has the following advantages:
- the efficiency is raised by 50% and more
- consumption of rotor can be diminished by 50%
- the feeding size can be raised by 2 or even 3 times
- energy can drop by 40%
Main components of short process sand making system
Short process sand making system can well control the grading curve. When using the same cement to configure concrete, short process sand making equipment can produce higher strength of sand. It mainly consists of the following parts:
1. the main engine of sand maker
- Capacity: 100-400t/h
- Application: customized for cement, sand and gravel, specifically for concrete, dry mixed mortar production manufacturers
- Advantage: occupying a smaller area, shorter construction period, low investment in civil engineering cost, no dust and little noise, etc.
- Delivery: 15-30 days
- Max feeding size: 150mm
- Shipping ports: Shanghai, Qingdao, Tianjin
