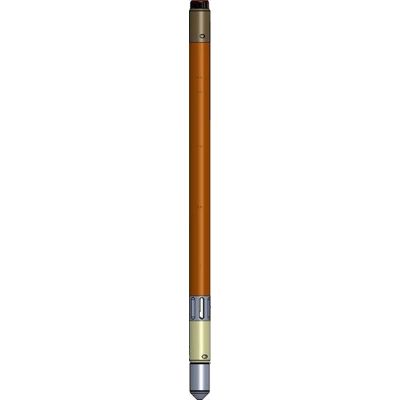

DSS Tools - Model TTP-11 -1-11/16Inch Temperature Pulse Tool

SHARE

The 1-11/16” Temperature Pulse Tool (TTP-11) measures borehole fluid temperature. The TTP-11 have a GO pin Feed-Through to allow negative-voltage powered tools to run in combination (for ex. Noise tools). Tool applications include: Finding cement top, locating fluid entry, identifying gas leaks, and injection zones. The TTP-11 tool measures fluid temperature by measuring the resistance of a platinum RTD (Resistance Temperature Detector) inside a pressure probe. The measurements from the low mass probe results in high resolution data with fast temperature response.

Most popular related searches

gas leak detection system

resistance temperature detector

gas leak detection

borehole monitoring

fluid measurement

temperature monitoring

Borehole fluid temperature
Identification of cement top
Gas leak detection and injection zones
Location of fluid movement behind casing

Rated for high-temperature and high-pressure environments
Bottom end feed through power (optional to run negative voltage)
Compatible with most surface systems
Tool calibrated to 20 counts/°C and can be calibrated to 10 counts/°F
Can be run alone or combined with most analog tools
Electronic design verified for 1 hour operation at 415°F to ensure reliability
Easy to service and maintain
Proudly designed and manufactured in Canada

Tool Operating Voltage : 90-150 VDC
Tool Length (make-up) : 72.79 cm (28.66 in)
Tool Operating Current : 10-20 mA
Tool Length (shipping) : 82 cm (32.29 in)
Output Pulses Amplitude : Positive 7.5 VDC
Tool Weight : 5.57 Kg (12.3 Lb)
Output Pulses Width : 25 µS
Measurement Point from Top of Tool : 61.36 cm (24.16 in)
Max. Pressure by design : 172.4 Mpa (25,000 PSI)
Borehole Fluids : Oil – Fresh Water – Brine
Max. Temperature : 204°C (400°F)
Top End Connector : Contact Socket Go Female
Tool Diameter – OD : 42.86 mm(1-11/16 in)
Bottom End Connector : Contact Pin Go Male
