Du-Co - Ceramic Post Terminal Caps and Skirts

SHARE

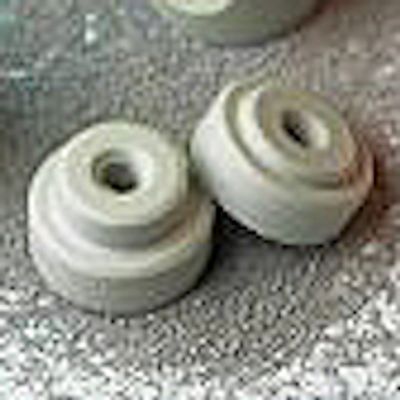

Terminal covers (for use with post terminals). Individual ceramic terminal covers are designed to protect individuals from exposed terminals. Ceramic slotted skirt and threaded cap may be installed after wiring has been completed.

Part No.
OD
ID
Shoulder Length
Shank Length   Overall Length
ID TAP             ID DEPTH
AM-1993 0.725 0.52 0.255 0.06 0.315 8-32 TAP 0.25
AM-2992 0.725 0.52 0.255 0.066 0.315 10-24 TAP 0.25
AM-2764 0.725 0.52 0.255 0.066 0.315 10-32 TAP 0.25
AM-4184 0.75 0.531 0.281 0.187 0.468 10-24 TAP 0.3125
AM-0781 0.75 0.531 0.281 0.187 0.468 10-32 TAP 0.3125
AM-4739 0.8125 0.581 0.281 0.156 0.437 1/4 – 20 TAP 0.234
Part No.
OD  ID             Overall Length       Slot #1 Width        Slot #1 Length       Slot #2 Width        Slot #2 Length
A-2947 0.725           0.57 0.562 0.33 0.3 0.33 0.4
A-3567 0.735 0.535 0.56 0.445 0.281 0.445 0.406
A-1994 0.75 0.57 0.5625 0.22 0.3 0.21 0.4
A-1994-1 0.75 0.57 0.6875 0.22 0.3 0.21 0.4
A-0738 0.75 0.562 0.562 0.218 0.406 0.205 0.281
A-4740 0.8125 0.612 0.562 0.445 0.281 0.445 0.406
