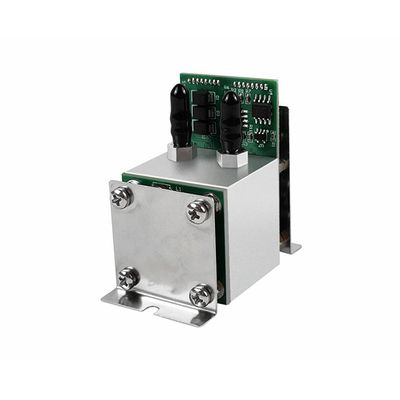

Cubic Instruments - Model Gasboard-2005 -Dual Beam NDIR Gas Bench
The Gasboard-2005 series NDIR gas bench is suitable for vehicle emission or exhaust gas measurement, which adopts the high-precision dual-beam non-dispersive infrared (NDIR) gas analysis technology with independent intellectual property rights, based on the characteristics of the specific wavelength absorption of gas molecules to measure the light absorption rate of each gas then detect the concentration. Cubic Instruments has many years of experience in OEM/ODM supporting of Fortune 500 companies, which can meet the different needs of customer system development.Most popular related searches
NDIR gas
NDIR gas analysis
NDIR hydrocarbons
modular gas analyzer
gas analysis device
exhaust gas monitoring
NDIR
gas monitoring
vehicle emissions
gas analysis
- One sensor bench measure one gas
- High precision dual-beam NDIR technology
- Measurement high concentration CO,CO2,CH4
- Measurement range can be customized
- No moisture & vibration interference
- Modular design for easy integration & maintenance
- Range:
o CO: Min Range: 0-2%; Max Range: 0-100%
o CO2: Min Range: 0-500ppm; Max Range: 0-100%
o CH4: Min Range: 0-1%; Max Range: 0-100%
o (Measurement range can be customized) - Resolution: 1ppm/0.01%
- Precision: ±2%FS
- Stability: ＜1%FS
- Repeatability: ＜1%FS
- Zero Drift: ＜2%FS/24h
- Response Time: ＜30s
- Warm‐up Time: 30min
- Output: RS 232 (Standard)
