CrossOver - Model CO4080 -Dual-Channel Ground Penetrating Radar (GPR) Antenna
It incorporates two channels with ultra-wide band frequencies centred around 400 MHz and 800 MHz. Inbuilt GPS-unit. The simple choice for both novices and experts. The best general-purpose antenna to cover a wide-range of GPR applications. The CO4080 offers excellent resolution for shallow to medium depth investigations.
- Archaeology
- Concrete Inspection
- Damage Prevention
- Environmental Assessment
- Forensics
- Geological Investigation
- Road Inspection
- Utility Detection
- And more…
- RTS-based technology
- Dual-channel (LF & HF)*
- Android-driven interface
- Wireless data collection
- Internal data security
- Integrated GPS
- 7-hour battery life
- No survey speed limitation
- Frequency: LF: 400 MHz | HF: 800 MHz
- Dimensions: 444 x 355 x 194 mm
- Weight: 6.35 kg (including battery)
- Depth range: down to 6m
The CrossOver measuring wheel and pulling accessories provide an alternative means to collect data in less accessible areas or where space is limited. Ergonomically designed to provide maximum comfort for the operator even during many hours of use.

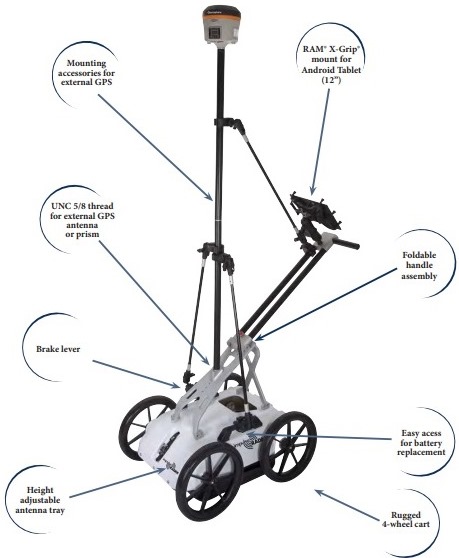

The CrossOver CO4080 cart provides an efficient means to move the antenna over a range of surfaces for the rapid collection of GPR data. The handle assembly is fully foldable to reduce the physical footprint, making transportation and storage much more efficient.
