Crossover - Model CO1760 -Dual-Channel Ground Penetrating Radar (GPR) Antenna
It incorporates two channels with ultra-wide band frequencies centred around 170 MHz and 600 MHz. Inbuilt GPS-unit. The simple choice for both novices and experts. The best mid-range antenna to cover a wide-range of GPR applications. The CO1760 offers excellent resolution for medium to deep depth investigations.
- Archaeology
- Environmental Assessment
- Forensics
- Geological Investigation
- Law Enforcement & Military
- Mining
- Utility Detection (deeper)
- UXO
- And more…
- RTS-based technology
- Dual-channel (LF & HF)*
- Android-driven interface
- Wireless data collection
- Internal data security
- Integrated GPS
- 7-hour battery life
- No survey speed limitation
- Frequency: LF: 170 MHz | HF: 600 MHz
- Dimensions: 695 x 445 x 205 mm
- Weight: .5 kg (including battery)
- Depth range: down to 15m
The CrossOver measuring wheel and pulling accessories provide an alternative means to collect data in less accessible areas or where space is limited. Ergonomically designed to provide maximum comfort for the operator even during many hours of use.

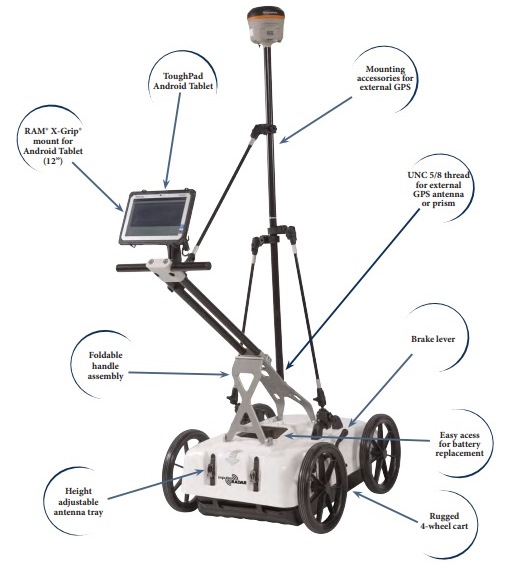

The CrossOver CO1760 cart provides an efficient means to move the antenna over a range of surfaces for the rapid collection of GPR data. The handle assembly is fully foldable to reduce the physical footprint, making transportation and storage much more efficient.
