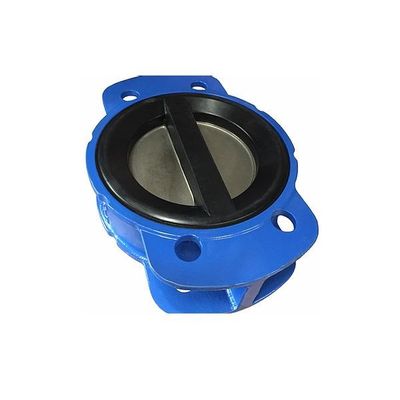

Champion - Model CVL -Dual Disc Spring Loaded Elastomer Lined Wafer Check Valve
Fully lined elastomer insert provides complete isolation of the process media. Simplifies piping, optimizes space utilization, and lowers installation costs. Versatile functionality for horizontal and vertical installations. Zero fugitive emission design. Extruding elastomer liner face eliminates the need for flange gaskets. Plate travel stops are integrally molded to the valve lining. 2" -24" - ASME Class 150.
Most popular related searches
wafer check valve
check valve
dual disc check valve
fugitive emissions
disc check valve
gaskets
zero emissions
valve testing
- The Model CVL elastomer lined check valve is available in EPDM (standard), Buna-N, and Viton® configurations.
- A fully lined elastomer insert provides complete isolation of the process media from the ductile iron valve body.
- All internal support hardware, including discs, springs, braces and brackets, are manufactured of corrosion-resistant
- 316 Stainless Steel.
- 2” through 20” body sizes available in ASME Class 150 rating.
- Plate travel stops are integrally molded into the liner to eliminate seams and dissimilar material issues.
- The protruding liner face eliminates the need for flange gaskets.
- The ductile iron valve body is fully coated inside and out with a highly durable layer of epoxy paint.
- All CVL Elastomer Lined Dual Disc Wafer Check Valves are thoroughly tested and inspected to meet our strict ISO 9001
- system standards.
