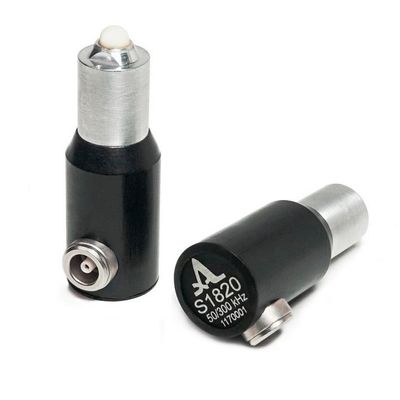

ACS - Model S1820 -Dual Frequency Shear Wave DPC Transducer

SHARE

Low-frequency ultrasonic transducer for transmitting or receiving the ultrasonic shear waves in two operating frequencies for ultrasonic pulse velocity testing and characterization of material properties.

Most popular related searches
ultrasonic pulse velocity test
ultrasonic pulse velocity
ultrasonic transducer
material properties testing
shear wave transducer
dry-point-contact ultrasonic transducer
ultrasonic testing
ultrasonic processor
material characterization

A general-purpose low-frequency transducer with the nominal frequency of 50 KHz and 300 KHz for the dry-point-contact (DPC) excitation or acquiring ultrasonic shear waves in highly scattering materials (concrete, wood, stones etc.)

It can be used in ready-made housing with the Lemo00 plug or non-wired for self-tailored applications, e.g. for customization of transducer arrays by the customer.

The transducer can be driven by following ACS instruments:

  • Transducer type: Dry Point Contact
  • Ultrasonic wave mode: Longitudinal
  • Nominal frequency: 50 KHz and 300 KHz

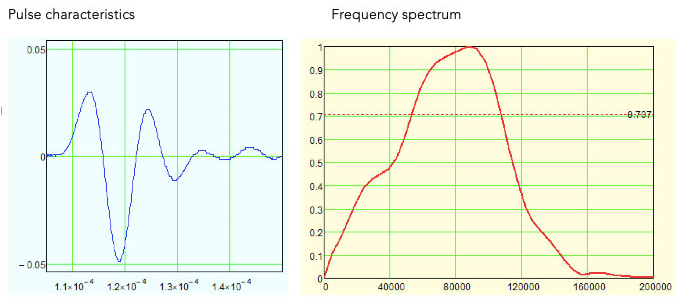

  • Band width: 20 to 80 KHz and 150 to 400 KHz
  • Capacity: 5000±500 pF
  • Maximal pulse voltage (bipolar): 400 V (peak-to-peak)
  • Temperature range: -20 to +50ºC
  • Weight: 14 g
