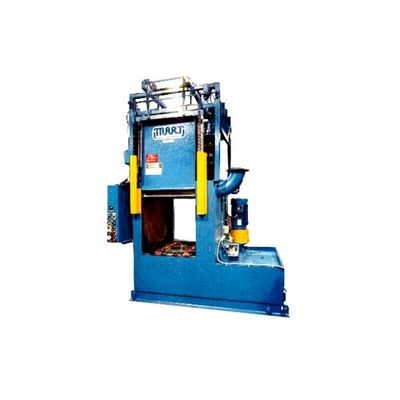

Tornado - Model 40 -Dual Lift Door Batch Style
Features & General Construction: Closed Loop Zero Discharge: Standard. Wash Pump Suction Strainer: Standard. Adjustable Thermostat: Standard. Temperature Gauge: Standard. 24 Hour 7 Day Clock: Standard. Low Water System Shut-Off: Standard. Door Safety Interlock: Standard. Wash Cycle Timer: Standard. Sheet Steel Cabinet Thickness: 7 ga. 230 V or 460 V 60 Hz, 3-Ph Controls: Standard. Automatic Water Level Control & Refill: Standard.
- OSCILLATING NON-SYNCHRONOUS
- Angle of Oscillation: 40 degrees
- Frequency of Oscillation: 4 per minute
- Number of Wash Nozzles: 16
- Type of Nozzle: Vee-Jet
- Nozzle Material: 316 Stainless
- Nozzle Spray Pattern: 25 degrees
- Width ( Standard Unit ): 102 inches
- Depth ( Standard Unit ): 63 inches
- Height: 141 inches
- Empty Weight: 3,900 lbs
- Reservoir Capacity: 180 gallons
- Duplex Reservoir: Add 47 gallons
- Sludge Capacity: 47 gallons
- Turntable Diameter: 41 inches
- Work Height: 30 inches
- Door Width: (Std Unit): 32 inches
- Door Height: (Std Unit): 29 inches
- Table Load Capacity: 2,000 lbs
- Operating Temperature: 180 degrees F
- Initial Heat-Up Time: 90 minutes
- Element Size: 30 kW
- Motor Rating: Continuous Duty
- Motor Starters: Across the Line
- Enclosures: TEFC
- Short Circuit Protection: Standard
- Enclosures: NEMA 12
- Overall Protection: Standard
- Wiring Conduit: Flex Non-Metallic
- Motor Type: Industrial
- Type of Conduit: Liquidtight NEMA 12
High Efficiency, Rated for continuous duty (20 Start/hour without overheating), vertical, centrifugal, seal-less, balanced, enclosed impeller. Note: All performance data taken at nozzle tip.
Standard:
10 Horsepower
Total System Flow: 180 gpm
Flow per Nozzle: 11.3 gpm
System Pressure: 75 psi
Blast Velocity: 105 ft/sec
Upgrades:
20 Horsepower
Total System Flow: 221 gpm
Flow per Nozzle: 13.8 gpm
System Pressure: 112 psi
Blast Velocity: 129 ft/sec
30 Horsepower
Total System Flow: 256 gpm
Flow per Nozzle: 16.0 gpm
System Pressure: 152 psi
Blast Velocity: 150 ft/sec
40 Horsepower
Total System Flow: 268 gpm
Flow per Nozzle: 16.8 gpm
System Pressure: 165 psi
Blast Velocity: 156 ft/sec
55 Horsepower
Total System Flow: 303 gpm
Flow per Nozzle: 18.9 gpm
System Pressure: 212 psi
Blast Velocity: 177 ft/sec
- Turntable upgrade
- Short High Impact Manifold (SHIM)
- Pump Sound Insulation
- Pump Amp Meter
- Cabinet Thermal Insulation
- Auto Rinse Cycle (includes ASE)
- Auto Steam Exhaust (ASE)
- Rust Inhibitor Injector Pump
- Steam Exhaust PVC Kit
- High Output Electric Heat + 15 kW
- Internal Reservoir Cover
- Remote Grease Fittings
- Auto Oil Skimmer
- Heated Oil Skimmer
- Sludge Drag -Out Conveyor + 10" to ht
- Parts Basket - large pore with lid
- 5,000 lb Ratchet Strap to secure parts
- Turntable Fixture Kit
- Hot Air Blow-Off 3 hp and 30 kW
- Hour Meter
- Turntable Jog
- Gas Heat Source
- EQ-1 Wastewater Treatment System
- Industrial Control Package
- Stretched Machine Wk Height Mild Steel
- Stretched Machine Work Height Stainless Steel
- Stainless Steel Cabinet
- Stainless Steel Heat Exchanger
* NOTE: All Models available in load capacities Two to Three Times Greater.
