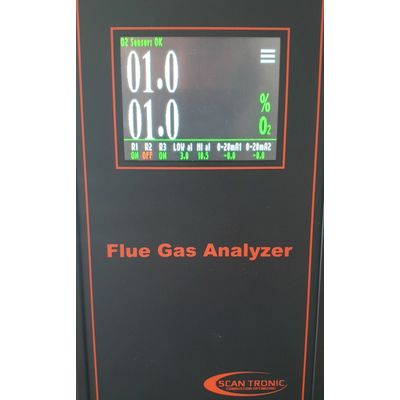

ScanTronic - Model DOC2018 -Dual Oxygen Control Flue Gas Analyzers
DOC2018 – Dual Oxygen Control 2018 (Q4 2019) (ready for production). Product based on two same O2 sensor and its developed for special system that needs requirement as those. Uses standard sensor port and one 0-10V with adapted special PCB that’s integrated in the case. (measure O2 + O2)
Flue Gas Controller is a modern flue gas analyzer platform for measurement of content in flue and emission gases at high temperatures. It is an advanced product with several editions of the product regarding of customers needs and desires. It is an upgradeable product that may have almost any sensor you desire. Upgrade of product is as well easy and it needs only to put memory card and the device will do the rest. It is a highly adaptive product and upgadeable for future decades of usage and all development that will come.
- Measures the excess of fluegas content directly in the flue gas channel after combustion.
- Measures the level of exhoust gases content in protective gases.
- Facilitates regulation and thus minimize the consumption of gases.
- Measures and controls the consumption of protective gases in connection with welding.
- Power supply - 230 V AC 50/60 Hz
- Power consumption - 30 VA
- Dimensions - H x W x D 244 x 159 x 65 mm
- Measuring range - 1.0 - 20.9% O2 and NOx (ppm)
- Display - Touch Screen
- Accuracy - ± 0.15%
- Ambient temperature - 60 °C
- Output signals - 2 x 0(4)-20 mA,
- Inputs - 2 x 0-10 V and standard 5 pin for OS2014 input
- Galvanic isolation - 300 V DC
- Alarms - 3 individually set levels
- Heat up time - Approx. 10 seconds
- Calibration - Atmospheric air and 1% (2%) O2 in N2 every 6 months
- Cable connections - 3+1 pcs. M16 and 1 pc. M20 cable glands
- Extra - memory card slot, RS485, CAN bus
