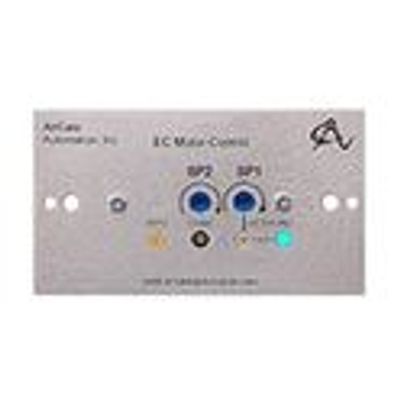

AirCare - Model ACM 2100 -Dual Setpoint EC Interface Module
Dual Setpoint EC Interface Module for GENTEQ 2.3/EON and US Motors/Nidec Motors. The ACM2100 Dual Setpoint EC Module allows the user to set the motor speed and remotely switch the speed through an open-closed contact (switch). The unit contains two onboard potentiometers to allow the customer to manually set both speeds. Onboard Digital multi-meter nodes provide setpoint and RPM measurements. The remote open-closed contact selects which potentiometer setting to apply.
The unit is designed to fit in a standard j-box enclosure and can be provided with an optional weather-proof cover (ACM2100 WP) suitable for outdoor installations. The unit is powered by a remote 24V isolated step-down transformer supplied separately. The unit is compatible with GENTEQ 2.3 / EON (RPM mode) and US Motors/Nidec Perfectspeed motors.
- Control Option Manual
- Motor/Fan Type EBM, GENTEQ, Rosenburg, US Motors/Nidec
- # of Motors 1 EC Motor
- Motor Interface 2-Speeds w/Switch, Motor Speed
- Input None
- Output RPM output mV DC
- DMM Ports RPM & SETPOINT
- Auto Adjust (Closed Loop) None
