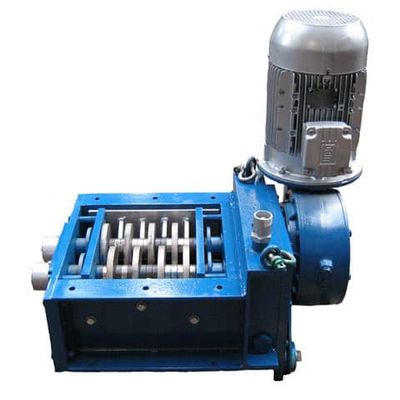

Brentwood - Model AZ5 -Dual Shaft Industrial Shredders Machine
The AZ5 is our smallest machine suitable for light shredding applications. The AZ5 is a 5kW dual shaft machine that has a wide range of uses including product destruction, swarf, glass, PET bottles, plastics and paper. Its small size means that it can be integrated into processes where the footprint is an issue.
Most popular related searches
dual shaft industrial shredder
shredding system
industrial shredders
industrial shredder
PET bottle
shredder
double shaft shredder
industrial double shaft shredder
swarf
plastic bottle
- 1 x 5kW drive
- High torque/low speed
- 41mm hexagonal shaft for superior strength
- Worm Drive reduction gearbox
- High surface hardness/high core strength repairable alloy cutters
- DOL, Smart Start, and Eco Vari Drive control options with auto reverse and overload protection.
- Wide range of cutter widths and hook types to suit different materials and output size requirements
- Wide range of infeed and discharge options
- Australian made for Australian conditions
- Power: 5 kW
- Full Load Current: 10 amps
- DOL Starting Current: 80 amps
- Shaft Centres: 129 mm
- Shaft Diameter: 41 mm
- Standard Cutting Chamber Length: 402 mm
- Cutting Chamber Width: 358 mm
- Machine Length: 897 mm
- Machine Width: 923 mm
- Machine Height: 420 mm
- Weight: 250 kgs
- Cutter Width Options: 10/16/31 mm
