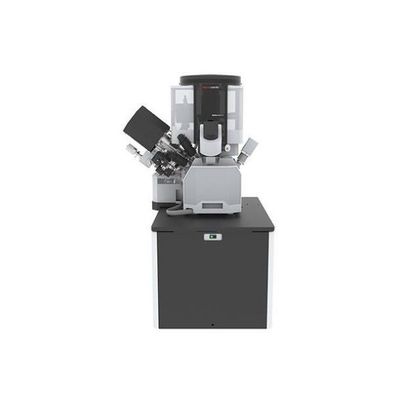

Helios DualBeam - Model 5 PFIB -Dualbeam Microscopes
The Thermo Scientific Helios 5 Plasma FIB (PFIB) DualBeam (focused ion beam scanning electron microscope, or FIB-SEM) delivers unmatched capabilities for large-volume 3D characterization, gallium-free sample preparation and precise micromachining and is part of the fifth generation of the industry-leading Helios DualBeam family. It combines the new PFIB column and the monochromated Thermo Scientific Elstar SEM Column to deliver advanced focused ion and electron beam performance. Intuitive software and an unprecedented level of automation and ease-of-use enable you to observe and analyze relevant subsurface volumes. Plasma focused ion beam scanning electron microscope for large volume 3D characterization and Ga-free sample S/TEM preparation.
High-quality, gallium-free TEM and APT sample preparation thanks to the new PFIB column enabling 500 V Xe+ final polishing and delivering superior performance at all operating conditions.
Fastest and easiest, automated, multisite in situ and ex situ TEM sample preparation and cross-sectioning using optional AutoTEM 5 Software.
High throughput and quality statistically relevant 3D characterization, cross-sectioning and micromachining using next generation 2.5 μA Xenon Plasma FIB column (PFIB).
Access high-quality, multi-modal subsurface and 3D information with precise targeting of the region of interest using optional Auto Slice & View 4 (AS&V4) Software.
Reveal the finest details using best-in-class Elstar Electron Column with high-current UC+ monochromator technology, enabling sub-nanometer performance at low energies.
The most complete sample information with sharp, refined, and charge-free contrast obtained from up to six integrated in-column and below-the-lens detectors.
Most advanced capabilities for electron and ion beam induced deposition and etching on FIB/SEM systems with optional Thermo Scientific MultiChem or GIS Gas Delivery Systems.
Artifact-free imaging based on integrated sample cleanliness management and dedicated imaging modes such as SmartScan™ and DCFI Modes.
Shortest time to nanoscale information for users with any experience level with SmartAlign and FLASH technologies.
Precise sample navigation tailored to individual application needs thanks to the high stability and accuracy of 150 mm Piezo stage and optional in-chamber Nav-Cam.
Electron optics
- Helios 5 PFIB CXe DualBeam
- Elstar extreme high-resolution field emission SEM column with:
- Immersion magnetic objective lens
- High-stability Schottky field emission gun to provide stable high-resolution analytical currents
- UC+ monochromator technology
- Helios 5 PFIB UXe DualBeam
Electron beam resolution
- At working distance (WD):
- 0.7 nm at 1 kV
- 1.0 nm at 500 V (ICD)
- At coincident point:
- 0.6 nm at 15 kV
- 1.2 nm at 1 kV
Electron beam parameter space
- Electron beam current range: 0.8 pA to 100 nA
- Accelerating voltage range: 200 V – 30 kV
- Landing energy range: 20* eV – 30 keV
- Maximum horizontal field width: 2.3 mm at 4 mm WD
Ion optics
- High performance PFIB column with Inductively Coupled Xe+ Plasma (ICP)
- Ion beam current range: 1.5 pA to 2.5 µA
- Accelerating voltage range: 500 V - 30 kV
- Maximum horizontal field width: 0.9mm at beam coincidence point Ion beam resolution at coincident point
- <20 nm at 30 kV using preferred statistical method
- <10 nm at 30 kV using selective edge method
Detectors
- Elstar in-lens SE/BSE detector (TLDSE, TLD-BSE)
- Elstar in-column SE/BSE detector (ICD)*
- Everhart-Thornley SE detector (ETD)
- IR camera for viewing sample/column
- High-performance ion conversion and electron (ICE) detector for secondary ions (SI) and electrons (SE)
- In-chamber Nav-Cam sample navigation camera*
- Retractable low voltage, high contrast directional solid-state backscatter electron detector (DBS)*
- Integrated beam current measurement
Stage and sample
- Flexible 5-axis motorized stage:
- XY range: 110 mm
- Z range: 65 mm
- Rotation: 360° (endless)
- Tilt range: -38° to +90°
- XY repeatability: 3 μm
- Max sample height: Clearance 85 mm to eucentric point
- Max sample weight at 0° tilt: 5 kg (including sample holder)
- Max sample size: 110 mm with full rotation (larger samples possible with limited rotation)
- Compucentric rotation and tilt
High-precision, 5-axis motorized stage with XYR axis, piezo-driven
- XY range: 150 mm
- Z range: 10 mm
- Rotation: 360° (endless)
- Tilt range: -38° to +60°
- XY repeatability: 1 μm
- Max sample height: Clearance 55 mm to eucentric point
- Max sample weight at 0° tilt: 500 g (including sample holder)
- Max sample size: 150 mm with full rotation (larger samples possible with limited rotation)
- Compucentric rotation and tilt
