Underground Magnetics - Model Echo ST -Duct Transmitter

SHARE

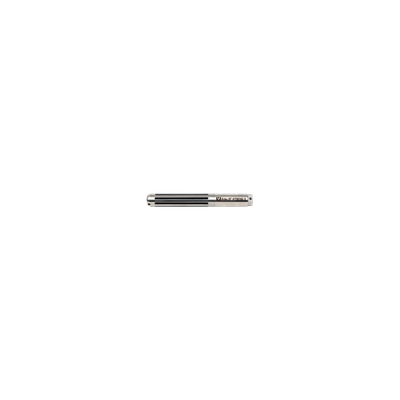

The Echo ST duct transmitter is designed for locating existing ducts efficiently. This advanced transmitter operates at a frequency of 30 kHz and is compatible with any UMag locating system. The device features a compact design with dimensions of 6 inches in length and 0.75 inches in diameter. It is powered by a Super Cell 16340 x 1 rechargeable lithium battery, offering up to 18 hours of operation in normal mode and providing a signal range of up to 60 feet (18 meters). The Echo ST duct transmitter is an essential tool for professionals in the field of underground utility detection, ensuring precise and reliable location tracking. Starting at $1,200, this transmitter is robust and designed for optimal performance in various operational environments.
Most popular related searches
underground utility locating
locating system
underground utility
utility locating
detect underground utilities

The Echo ST is a duct transmitter used to locate existing ducts. The Echo ST will work with any UMag locating system at 30 kHz. (6″ long x 0.75″ dia)

Dimensions: 6 × .75 in
Frequency: 30kHz
Battery Type: 16340 x 1 Rechargeable Lithium Battery (Super Cell)
Battery Life: 18 Hours – Normal Mode
Depth & Data Range: 60 ft (18m) – Normal Mode
