Duroair Technologies Inc.

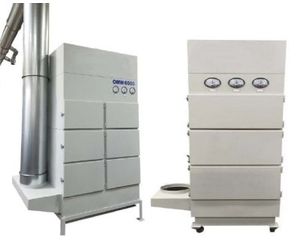

- Model OMW Series - Oil Mist Filtration Systems

0

Engineered to work in the most demanding manufacturing environments, the Duroair OMW series of oil mist filtration systems regularly outperforms most centrifugal collectors with less maintenance and at a significantly lower capital investment.

Unlike traditional oil mist collectors with overpriced centrifugal filters, cartridges, and electrostatic precipitators, the OMW’s streamlined multi-filtration process quickly and effectively separates solid particulates in oil and water and captures oil for reuse.

Duroair has completely reinvented the oil mist collection process for a more cost-effective containment solution to effectively improve health, safety, and productivity.

The OMW ambient capture solution:

  • Requires no ductwork, so it won’t interfere with overhead cranes or other obstructions that cause trouble for existing ventilation systems
  • Reduces noise levels with an integrated silencer by decreasing static pressure
  • Adjusts via Clarion® unit nozzles to create airflow patterns that work best in your facility

  • Equipped with four different CFM models and one-to-four-year filter life to handle high pressure fluids and smoke and mist
  • Requires no ladders for easy-access maintenance
  • Comes standard with VFD and fluid pump
  • Recycles expensive fluids with self draining and cleaning functionality
  • Traps oil and particles via the first wicking stage
  • Drains these particles down into the sump located below the filter at state of saturation
  • Pumps oil mist away for reuse or disposal
  • Filters out finer mist and smoke particles in second wicking stage
  • Captures the remaining smallest particulate down to 0.30 microns in third stage wicking
  • Discharges clean air from the top of the collector into the facility

Available OMW models:

  • OMW 800 with 800 Airflow CFM
  • OMW 2000 with 1500 Airflow CFM
  • OMW 3000 with 3000 Airflow CFM
  • OMW 6000 with 6000 Airflow CFM

All classifications are in accordance with U.S. Federal Standard 209E and represent concentrations of particles using reference size of 0.5 micron:

Code Compliance: Code Description

  • NIOSH: exposure limits of TWA 5 mg/m3 ST 10 mg/m3
  • OSHA PEL: OSHA permissible exposure limits (PEL) of 5 mg/m3 as an 8-hour TWA for mineral oil mists
  • OSHA PEL: of 15 mg/m3 TWA for total particulate
  • OSHA PEL: of 5 mg/m3 TWA for respirable fraction
  • OSHA 29CFR - 1910.94: ventilation
  • OHSA O.Reg 851-63: ignition or explosive
  • OHSA O.Reg 851-65: dust – ignition or explosive
  • Electrical CSA: Certified
  • NESHAP: National Emission Standards for Hazardous Air Pollutants
  • UL: U.S. and Canada
  • ISO cleanroom compliant: up to Class 1000/ISO6 (ISO class clean room typically measures micron sizes 5.0µ, 0.5µ and 0.3µ)
