EmiControls

- Model V12SM - Dust Abatement Sprayers

From

0

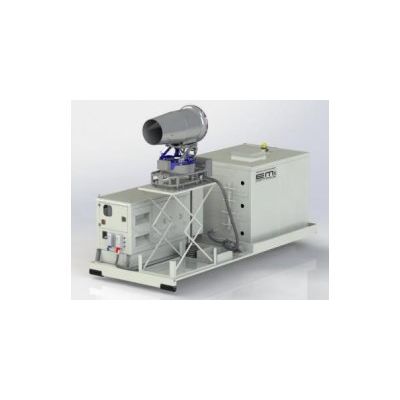

The V12Sm is the mobile solution to all your dust problems. It was designed on a platform so as to be loaded by any truck with a 6m (20 foot) loading bridge. It is the ideal solution for all the applications where the lack of water and power does not allow the use of standard equipment. The system can operate autonomously up to a maximum of 8 hours (with 20l/min.). Thanks to its small size the V12Sm can be easily shipped around the world. The unit is equipped with the latest generation of V12S which is faster and more compact, the water cistern of 10,000 liters (2642 US gallons) is made with special bulkheads on the inside to prevent excessive water motion. The power generator mounts an engine with emission Level 3A and delivers 60 kVA, so as to ensure proper operation of the unit.

  • Nominal voltage : 400 V
  • Frequency : 50 Hz
  • Nominal current : 31 A
  • Generator : 60 kVA
  • Nominal power - turbine : 11 kW
  • Nominal power - pump : 4 kW
  • Length overall : 6000 mm
  • Widht overall : 2500 mm
  • Height with lowered machine : 2400 mm
  • Height with machine working : 4400 mm
  • Capacity water tank : 10000 l
  • Weight mobile basis with machine : 5200 kg
  • Weight only dust abating machine : 650 kg
  • Storage temperature : -5° a 45° C
  • Tilt turbine : 0° - 52°
  • Swing (automatic) : 360°
  • Range (up to) : 50 m
  • Acoustic emissions (1500/1000 rpm) : 63/60 dB(A) @ 20m
  • Acoustic emissions generator : 63 dB(A) @ 20m
  • Min. water inlet pressure : 3 bar
  • Water filter : 250µm/60mesh
  • Number of nozzles : 12+18
  • Water consumption : 16-75 l/min
