FPI - Model CDMS-1000 -Dust Monitoring System

Dust from construction, demolition, and traffic can cause a significant impact on local air quality, posing health problems. Hence, dust mitigation monitoring is required at most construction sites. CDMS-1000 is designed with light scattering technology for continuous real-time measurement of particulate concentration along with noise and meteorological parameters. This combination consists of a particle analyzer, camera, sound level meter, and GPRS module.

• Measurement of TSP, PM10 & PM2.5, noise, meteorological parameters online;
• Particulate module and sound level meter auto-calibration;

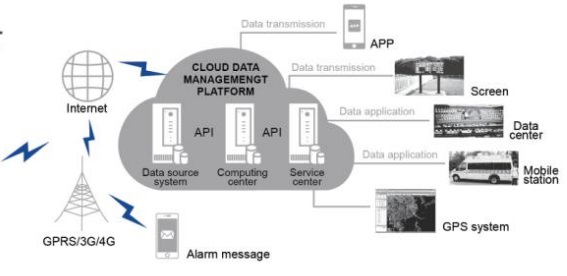

• System with GPRS and wireless function for remote control;
• Powerful software for auto video, camera, report, and early warning;
• Low maintenance and operation requirement;

• Measurement: TSP, PM2.5, PM10
• Measurement Range: 0~100mg/m3
• Principle: Light-scattered(self-calibration)
• Accuracy: ≤±10%
• Sampling Flow Deviation: ≤±5%
• Measurement Range: 30~130dB(A)
• Frequency Range: 20Hz~12.5kHZ
• Frequency Weighting: A,C,Z
• Temperature: -50~80?
• Humidity: 0~100%RH
• Wind Speed: 0~70m/s
• Wind Direction: 0-359°
• Pixel: 1.3 million pixel
• Focal Length: 4.7~94mm,20x optical zoom
• Rotate Range: 0~360°continuous rotation
• Communication: 2G/3G/4G/LAN/WIFI
• Power: 220V/50Hz/2A single phase electricity
• Environmental Temperature: -30~50?
