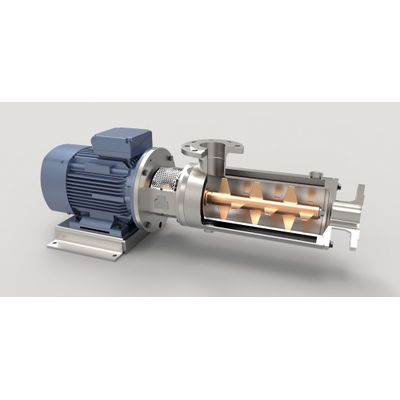

INDAG - Model DLM/M -Dynamic Inline Mixer Nonfood for Gentle Mixing
INDAG dynamic inline mixer type DLM/M is used to mix homogeneously a diversity of liquids. Even shear sensitive liquids or liquids with high solid content can be mixed. Only DLM/M rotor is equipped with mixing elements. Stator is without mixing elements. Therefore even fibrous particles will not lead to blockage of mixer. A small selection of examples for applications are: Mixing of sewage sludge + polymer solution; mixing of paper sludge + polymer solution; mixing of sewage sludge + high pressure steam; mixing of caustic lye + water; mixing of lubricant + additive; mixing wax + additive; mixing of aerated foams + additive without reducing quality of foam.
- Very good self-cleaning during CIP-cleaning
- No pressure loss
- No blockage entwining (clog) free
- Very homogenous mixing result
- Mixing energy can be changed variable and adapted to product or capacity changes
INDAG inline mixer type DLM/M has only mixing elements on rotor and no mixing elements in stator (mixer casing). Rotor can be equipped with mixing elements of different geometry. Geometry depends on product to be mixed. INDAG mixer DLM/M is designed in a modular way. A single acting mechanical seal can be changed to double acting mechanical seal without change of mixer. INDAG mixers are designed likewise for explosive range and products (ATEX).
Positioning
Horizontal or vertical position of mixer is possible
Pressure levels
6 bar, 10 bar, 16 bar, 25 bar, 40 bar, 100 bar
Materials
1.4301 (AISI 304), 1.4404 (AISI 316L), 1.4539 (AISI 904L), 1.4462 (AISI 318), PVDF, PTFE, Teflon coated, Tantal coated
Seals
Single acting mechanical seal; double acting mechanical seal; stuffing box seal, magnetic coupling
Connections
EN, DIN, ANSI flange
Rotational Speed
100 rpm to 1,800 rpm
Capacities
50 l/h to 120,000 l/h
Temperatures
0 °C to 300 °C
Viskosities
1 mPas to 1,000,000 mPas
