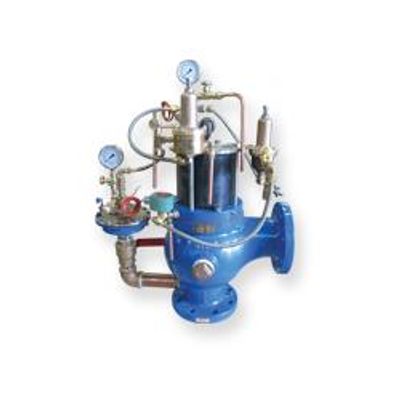

Singer Valve - Model A106-DL-Air / A106-DL-ET -Dynamic Lifter Air Operated Pressure Relief Valve
The Model A106-DL-Air is a compact sewage relief valve that is suitable for high pressures up to 200 psi / 13.8 bar, responds very quickly and retains all the features and benefits of the Model A106-DL Spring–Hydraulic version. It is an attractive solution to what may be otherwise a difficult application due to higher pressures or space height limitations. The Model A106-DL-Air-ET retains all the features and benefits of the Model A106-DL-Air with the additional feature of two 3-way solenoid valves which forces the valve open upon power failure.
A106-DL-Air:
- Eliminates surges and prolongs pipe life
- Adjustable closing speed
- Utilizes compress air or plant air

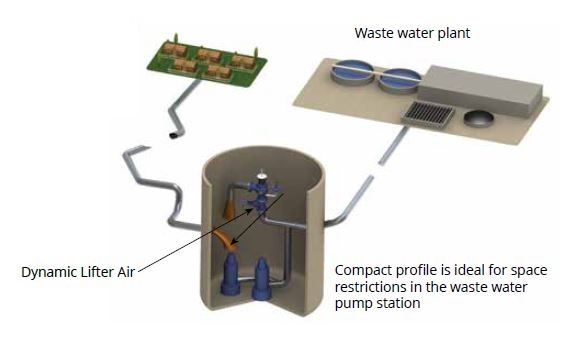

- Smaller profile allows installation into limited space
- Ideal for higher pressures
A106-DL-Air-ET:
- All key features of the A106-DL-Air
- Solenoid valve anticipates surges resulting from power failures

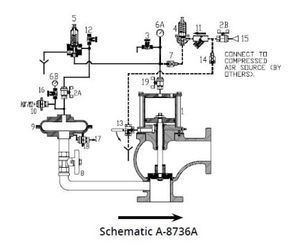

1. Model A106-DL-Air
2. Isolating Valve (2A, 2B)
3. Needle Valve
4. Pressure Reducing Pilot - Model 160
5. Relief Pilot - Model 81-RP
6. Pressure Gauge (6A, 6B)
7. Fixed Restriction
8. Isolating Valve
9. Diaphragm Isolator
10. Bleed Valve
11. Check Valve, J0040A
12. Bleed Valve
13. Manual Override Valve
14. Fixed Restriction
15. Air Supply
16. 852B Needle Valve
17. Air Charge Valve
18. Isolating Valve
19. Isolating Valve

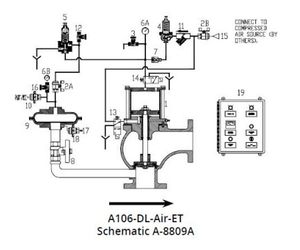

1. Model A106-DL-Air
2. Isolating Valve (2A, 2B)
3. Needle Valve
4. Pressure Reducing Pilot - Model 160
5. Relief Pilot - Model 81-RP
6. Pressure Gauge (6A, 6B)
7. Fixed Restriction
8. Isolating Valve
9. Diaphragm Isolator
10. Bleed Valve
11. Check Valve, J0040A
12. Bleed Valve
13. Solenoid Valve - 3 way - NC
14. Solenoid Valve - 3 way - NO
15. Air Supply
16. 852B Needle Valve
17. Air Charge Valve
18. Isolating Valve
19. Optional SAP control panel
