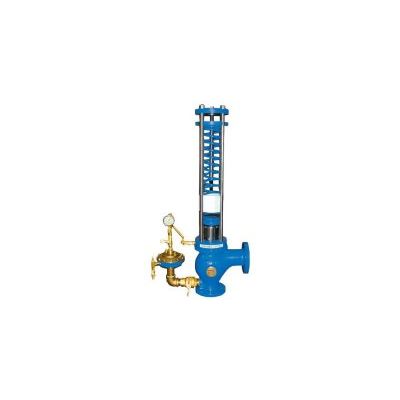

Singer Valve - Model A106-DL -Dynamic Lifter Spring Pressure Relief Valve
The A106-Dynamic Lifter (DL) sewage pressure relief valve is a direct acting spring loaded relief valve. The valve is adjusted to open when the pressure exceeds the set-point, which is approximately 10% above the normal operating pressure. The valve closes drip-tight when pressure falls below the set-point. The DL is connected on a tee off the main line and usually discharges relief flow back to the main sump to reduce the surge over-pressure. A speed control permits adjustment of the closing speed.
Most popular related searches
pressure relief valve
relief valve
isolation valve
swing check valve
check valve
raw water
pressure gauge
sewage
booster station
water containment
The opening force is boosted by the line pressure operating, via the separation chamber, on the piston. By applying external pressure to the test connection, the valve may be cycled open for routine maintenance.
Ideal for:
- raw water that contains organics
- booster sewage stations
- Low maintenance
- Hygienic and minimal time to flush and test operations
- Premium materials reduce maintenance, providing the lowest long-term cost of ownership

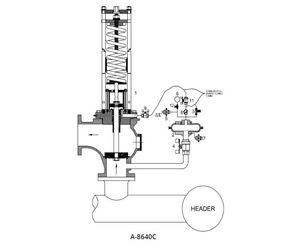

- Model A106-DL - Body
- Diaphragm isolator
- Closing speed control
- Isolating valve
- Oil filled isolating valve
- Pressure gauge
- Isolating valve
- Teflon seated swing check valve
- Isolating valve – external pressure for test and flush cycle
- 3/8 NPT flexible hose
- Isolating valve
- Gauge cock
