Dyno - Model Mill Uni Lab -Laboratory Agitator Bead Mill
The DYNO-MILL UNI LAB is designed to meet the rigorous demands of research and development. This compact laboratory agitator bead mill incorporates DYNO-MILL UBM and ECM-AP technology, making it an ideal solution for producing dispersions and fine grinds down to the nanometer range. It can handle a wide range of product viscosities with its dual grinding principles and unique DYNO-ACCELERATOR technology, which optimizes flexibility and cost-effectiveness. This model features DYNO-DISC BC agitator discs with specialized grinding media channels that ensure efficient acceleration and effective grinding by creating two counter-rotating circuits. The DYNO-MILL UNI LAB is engineered for easy integration into laboratory settings, providing reliable performance for industries such as pharmaceuticals, coatings, and cosmetics, where precise particle size control is critical.The DYNO-MILL UNI LAB covers a broad spectrum: it produces dispersions and fine grinds down to the nanometer range quickly and efficiently and is suitable for low- to high-viscosity products.
The compact agitator bead mill can be operated with two different grinding principles. In the standard version, it is the scale-up model for the DYNO-MILL UBM series. The housing allows the use of a second grinding chamber with the world-renowned DYNO-ACCELERATOR technology for unmatched flexibility and cost-effectiveness in the laboratory.

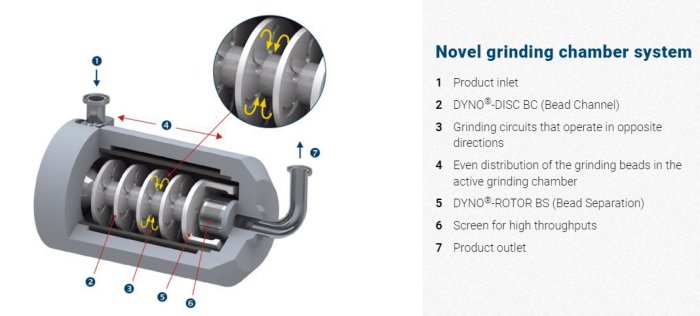

The DYNO-MILL UNI LAB uses the newly developed DYNO-DISC BC agitator discs with their unique grinding media channels (bead channels) in combination with a closed outer contour.
The grinding media channels ensure the effective acceleration of the grinding media along a precisely defined path. They build up two effective, counter-rotating grinding circuits between each of the DYNO-DISC agitator discs.
- Suitability for high throughputs and highly viscous products
- Wide range of materials for optimum machine equipment
- Suitable for temperature-sensitive products thanks to effective cooling of the grinding chamber
- Suitability for steel, glass and ceramic grinding media
- Uniform grinding media density distribution in the grinding chamber for maximum efficiency
- Efficient grinding with grinding media from ø 0.2 mm (with a grinding chamber exchange unit DYNO-ACCELERATOR, grinding media from ø 0.1 mm can also be used)
- Long screen life
- Suitability for passage and circuit mode
- Simple and ergonomic machine handling incl. maintenance work
- Fast product changeover
- Wide range of control solutions
