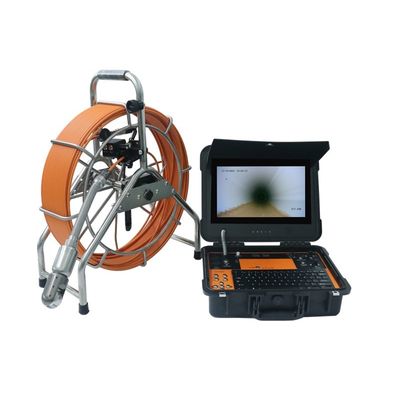

E-vision - Model EMH388PT -Pipe Inspection Camera
The EMH388PT Pipe Inspection Camera is an advanced tool designed specifically for the rigorous demands of industrial pipeline examination. Using state-of-the-art optical and image processing technology, this borescope enhances the ability to inspect complex and challenging pipeline environments which are typically inaccessible by conventional methods. It features high-definition cameras capable of capturing detailed images of interior pipeline conditions, identifying issues such as corrosion, cracks, obstructions, and foreign objects. The real-time display functionality provides precise location data, which improves maintenance efficiency and reduces repair costs. This ensures better reliability and operational safety within the manufacturing process. Constructed to meet the diverse needs of industries such as automotive, oil and gas, aerospace, and power generation, the EMH388PT supports specialists in conducting effective maintenance and repair activities, thus promoting overall system stability and safety.Safety and stability of pipeline systems are absolutely vital in contemporary industrial manufacture. But conventional inspection techniques sometimes find it difficult to properly spot any problems in internal pipeline environments due of their complexity and inaccessibility. Using cutting-edge optical and image processing technology, industrial pipeline borescopes—advanced inspection tools—examining internal pipeline conditions effectively. Using these borescopes allows specialists to rapidly identify and fix hidden issues, therefore guaranteeing seamless functioning and improving both dependability and safety in the manufacturing process.
- Resolution: 960P 2 mega pixel camera;
- Display: 13-inch HD Screen
- 360° Joystick Articulation with IP68 waterproof design
- Up to 100 meters with cable reel
- DVR with keyboard control, video/audio/image recording capability
- Supports meter counter, with pipe guide wheel
- Supports Li-ion battery and power adapter, 5-hour battery life
- Application: Municipal engineering, water pipe construction, construction industry, etc
Structure: Pipe inspection camera with DVR control (video/audio/image storage)
Camera pixel: HD 2 megapixel
Screen size: 13 inch LCD screen
Cable size: Cable diameter Ø7.0mm, standard cable length 50m (up to 100m)
Control: USB/bluetooth/keyboard, support 16x zoom
Camera size: Ø50mm×153mm
Meter counter: Built-in meter counter with 1% accuracy
Total weight: 26kg
Articulation: 360° electrical articulation
Waterproof: IP68 10bars
Light: 6pcs high-brightness LED (adjustable)
Storage medium: Hard disck storage
Battery: 8800mA li-ion battery pack, 5 hours work time, support AC adapter
Cable reel size: 510×250×640mm
Pipe guide wheel: Outer diameter 85mm-450mm
Working temperature: -20℃ to 80℃
Others
- Camera rotation joystick
- Rotate reset button, focus reset button
- Built in Chinese, English, and character input system
- Bluetooth keyboard with USB and metal keys
- Manually controlled recording with record key
- Audio/video output, with function of recording videos and taking photos at the same time
- Fiberglass push rod cable, aviation plug connector
- Meter counter button RESET, Button F/M (switch inch/meter unit)
- Stainless steel portable cable rack, built-in digital counter with 1% accuracy
- Inspecting Internal Pipeline Conditions
Using high-definition cameras to record interior conditions like corrosion, cracks, obstructions, and foreign objects, industrial pipeline borescopes can be buried far into pipes. Using a pipeline borescope allows operators to rapidly and precisely evaluate the interior condition of the pipeline, therefore supporting future maintenance and repair activities.
- Enhancing Maintenance Efficiency
The real-time display features let operators exactly find problems, hence increasing maintenance efficiency and lowering repair costs.
