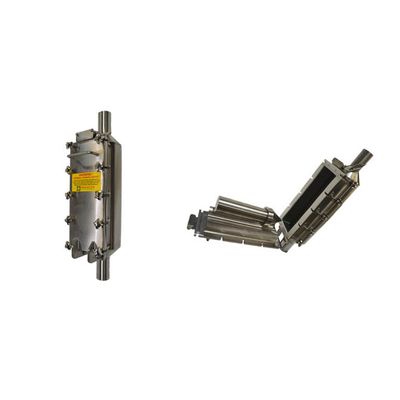

Greenwood Magnetics - Easy-Clean Bullet Magnet for Ferrous Metal Extraction
The Greenwood Easy-Clean Bullet Magnet is engineered to efficiently extract ferrous metal contamination from both gravity-fed and pneumatic pipelines. Enhancing the traditional bullet magnet design, it integrates an easy clean feature that simplifies regular maintenance. This feature significantly reduces operational downtime and enhances safety by minimizing the risk of injuries associated with handling sharp metal fragments during cleaning. Designed for installation in either vertical or horizontal configurations, it is ideally suited for high-velocity pneumatic process lines or intake lines dealing with powders and other free-flowing materials. The innovative easy clean mechanism ensures that efficiency is maintained while providing a safer working environment for operators. It demonstrates Greenwood's commitment to operational excellence and user safety.Most popular related searches
rare earth magnet
rare earth
metal cleaning
plastic granulate
hazardous cleaning
plastic granulator
granulator
safety testing
The Greenwood Easy-Clean Bullet Magnet is similar to the standard bullet magnet for extracting ferrous metal contamination from either gravity fed or pneumatic pipelines. However, it benefits from the easy clean facility. It is normally fitted vertically or horizontally in pneumatic process lines or intake lines with high velocity for powders, and other free-flowing ingredients.
As they need to be cleaned regularly to maintain efficiency, the easy clean facility makes this job much simpler and faster for the operatives, reducing downtime. It also improves operator health and safety by reducing the risk of cuts and abrasions which could possibly occur from removing sharp metal fragments from the powerful internal magnet.
- Easily installed
- Quick release stainless steel capped swing bolts
- Connections manufactured to your requirements
- Fast hazard free easy clean facility
- Ideal for free-flowing powders and granules: plastics, food ingredients
- Food quality seal
- Supplied with full documentation and material certificates
- Powerful high intensity rare earth magnets
- Suitable for pressure up to 2 bar
- Magnet strength up to 8000 gauss
- Fully welded and crack and crevice free to food industry standards
- Bead blast or polished finish internally – externally
- Optional safety switch
- Magnet strength tested and certified
- Suitable for use in Atex zone 20 environment
