FLUX - Model Type F 550 S -Eccentric Worm-Drive Pumps
Features and benefits: recommended for low to high viscosity, pasty, but still free flowing products,eccentric worm-drive pump with bearing flange in aluminium,with mechanical seal or stuffing box,low wear due to low pump speed,vertical and horizontal use,outer diameter of pump tube 50 or 54 mm,Type F 550 SX.-50/21 for use in Zone 0, tested and certified according to ATEX-Directive 94/9/EC, EC-Type-Examination Certificate No. PTB 99 ATEX 4050/4051 X.
Most popular related searches

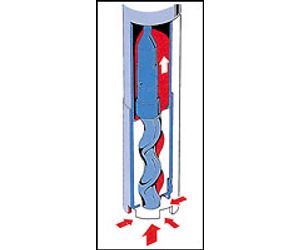

Positive displacement pump - eccentric worm type:
- smooth pumping with very little turbulences
- low wear, no valves, vanes etc.
- vertical and horizontal use
The pump is available in:
- Pump: stainless steel 316 Ti (S)
- Stator: PTFE, NBR, CSM, FKM
Immersion lengths:
27", 39" and 47" mm (other lengths on request)
Available drive motors:
- Three-phase motor 0,75 or 1,1kW, 930 or 700 min-1, jet-proof to IP 55 or explosion-proof to ATEX
- Air motor 0,5 - 1,8 kW, 1000 min-1 at 6 bar, explosion-proof to ATEX
The picture shows:
Eccentric worm-drive pump Type F 550 S-50/21 with three-phase motor
Performance data
- Delivery rate max. 13 GPM
- Delivery head max. 116 PSI
- Viscosity: pasty
- The delivery rate depends on the viscosity and flowability of the fluid.
